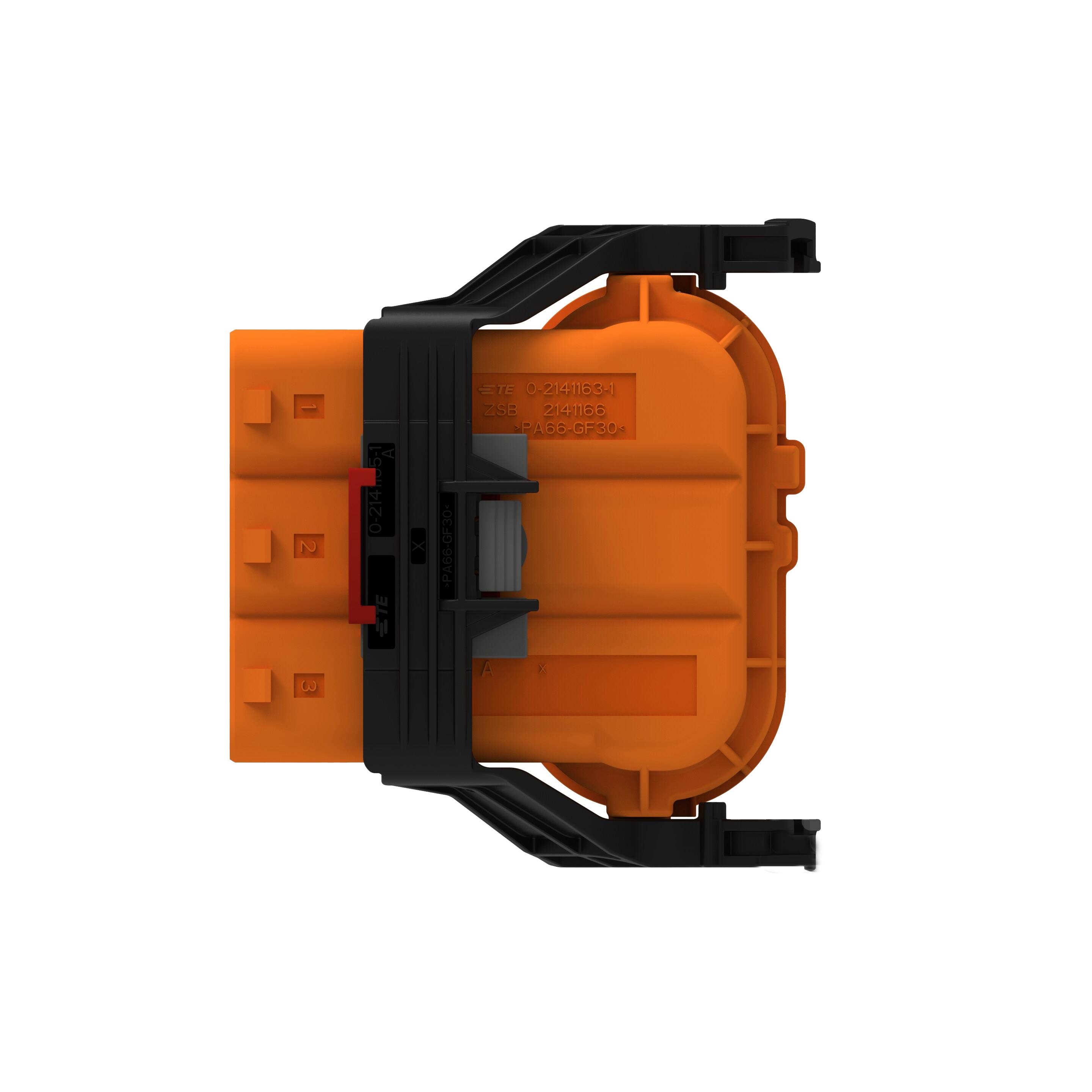

1-2325010-1
3POS,8MM HV,REC HSG,90 DEG,ASSY,Manufacturer: TE Connectivity AMP Connectors
Categories: Rectangular Connector Housings
Quality Control: Learn More
3 Rectangular Connectors - Housings Receptacle Orange 0.906"" (23.00mm)
Additional Information
Series: HVP 800RoHS Status: RoHS CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | Connector Position Assurance (CPA) |
| Packaging | Box |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Color | Orange |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 3 |
| Pitch | 0.906"" (23.00mm) |
| Operating Temperature | -40°C ~ 125°C |
| Contact Type | Female Socket |
| Fastening Type | Lever Lock |
| Row Spacing | - |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Number of Rows | 1 |
Request a Quote
Clients Also Buy

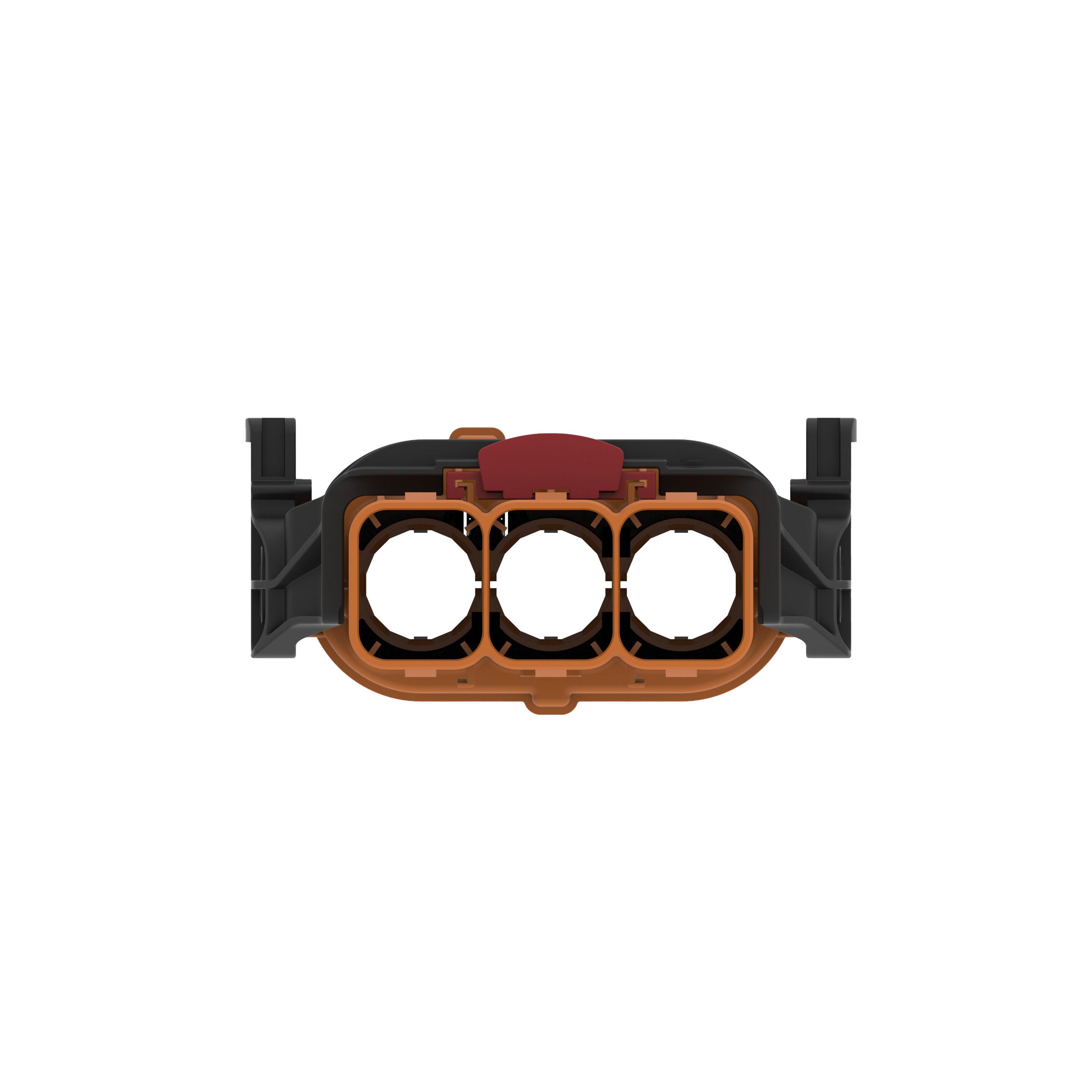

1-2177063-2
