8-55888-3
CONN QC TAB 14-16AWG 0.250 CRIMPManufacturer: TE Connectivity AMP Connectors
Categories: Quick Connects, Quick Disconnect Connectors
Quality Control: Learn More
TE Connectivity AMP Connectors Faston Series 8-55888-3 is a male, fully insulated heat shrink quick connect tab terminal. Designed for crimp termination, it accepts wire gauges from 14 to 16 AWG. The connector features a 0.250" (6.35mm) wide and 0.032" (0.81mm) thick tab with a tin contact finish on a copper contact material. With a total length of 1.600" (40.64mm), this free-hanging (in-line) mounted component is suitable for applications requiring reliable electrical connections in industries such as automotive, industrial automation, and appliance manufacturing. It is supplied in bulk packaging and features a blue insulation color.
Additional Information
Series: FastonRoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Gender | Male |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Fully Insulated Heat Shrink |
| Terminal Type | Standard |
| Length - Overall | 1.600"" (40.64mm) |
| Termination | Crimp |
| Tab Thickness | 0.032"" (0.81mm) |
| Tab Width | 0.250"" (6.35mm) |
| Tab Length | - |
| Contact Material | Copper |
Request a Quote
Clients Also Buy
181949-2
CONN QC TAB 0.250
1-520935-8
CONN RCPT HSG 0.25 2POS BLACK

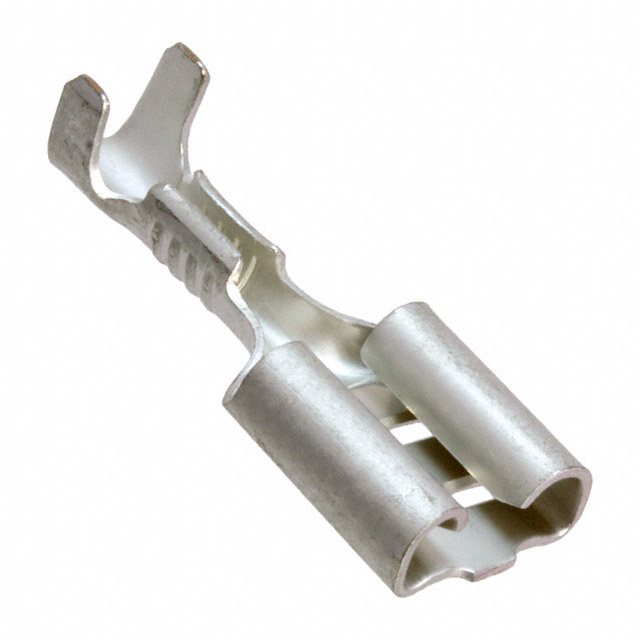

170123-2
