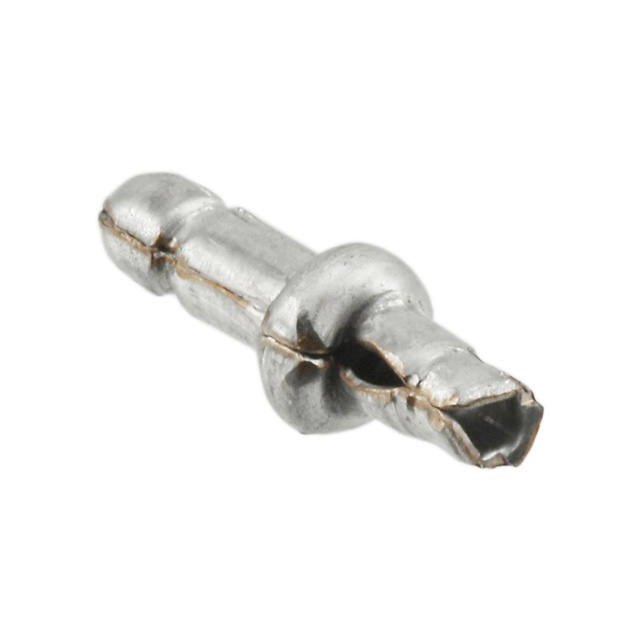

640394-1
CONN PC PIN CIRC 0.058DIA TINManufacturer: TE Connectivity AMP Connectors
Categories: PC Pin, Single Post Connectors
Quality Control: Learn More
TE Connectivity AMP Connectors 640394-1 is a tin-plated, non-insulated PC Pin featuring a single post, flanged terminal style. Designed for through-hole mounting, this component has a pin diameter of 0.058" (1.47mm) above the flange and accommodates a mounting hole diameter range of 0.055" to 0.061" (1.40mm to 1.55mm). The overall length is 0.310" (7.87mm), with 0.160" (4.06mm) extending above the flange and 0.100" (2.54mm) below. The phosphor bronze contact material ensures reliable conductivity. This electronic component is suitable for board thicknesses of 0.062" (1.57mm) and is supplied in bulk packaging. Its construction is well-suited for applications in the automotive and industrial electronics sectors.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Contact Finish | Tin |
| Mounting Type | Through Hole |
| Insulation | Non-Insulated |
| Board Thickness | 0.062"" (1.57mm) |
| Terminal Type | Single Post |
| Flange Diameter | 0.090"" (2.29mm) |
| Length - Overall | 0.310"" (7.87mm) |
| Termination | Clinch Fit |
| Mounting Hole Diameter | 0.055"" ~ 0.061"" (1.40mm ~ 1.55mm) |
| Contact Finish Thickness | - |
| Contact Material | Phosphor Bronze |
| Terminal Style | Flanged |
| Pin Size - Above Flange | 0.058"" (1.47mm) Dia |
| Pin Size - Below Flange | - |
| Length - Below Flange | 0.100"" (2.54mm) |
| Length - Above Flange | 0.160"" (4.06mm) |
