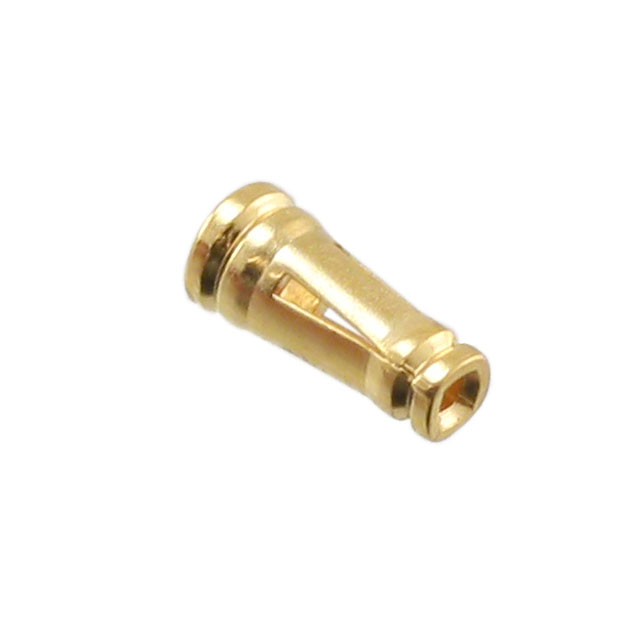

322-HCS8P2-100
CONN PIN RCPT .016-.021 SOLDERManufacturer: TE Connectivity AMP Connectors
Categories: PC Pin Receptacles, Socket Connectors
Quality Control: Learn More
TE Connectivity AMP Connectors HOLTITE series 322-HCS8P2-100 is a precision pin receptacle designed for robust electrical connections. This component accepts pin diameters ranging from 0.016" to 0.021" (0.41mm to 0.53mm) and can also accommodate a 0.025" (0.64mm) square pin. Constructed with a Beryllium Copper contact material and a gold contact finish, it ensures excellent conductivity and durability. The overall length of the receptacle is 0.100" (2.54mm), and it features a mounting hole diameter of 0.044" (1.12mm). The termination method is solder, and it has a "No Tail" design. This component is widely utilized in telecommunications, aerospace, and defense applications. It is supplied in bulk packaging.
Additional Information
Series: HOLTITERoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Contact Finish | Gold |
| Flange Diameter | - |
| Length - Overall | 0.100"" (2.54mm) |
| Termination | Solder |
| Mounting Hole Diameter | 0.044"" (1.12mm) |
| Contact Finish Thickness | - |
| Contact Material | Beryllium Copper |
| Tail Type | No Tail |
| Accepts Pin Diameter | 0.016"" ~ 0.021"" (0.41mm ~ 0.53mm) |
| Pin Hole Diameter | - |
| Tail Diameter | - |
| Socket Depth | - |
| Accepts Square Pin Size | 0.025"" (0.64mm) |
Request a Quote
Clients Also Buy

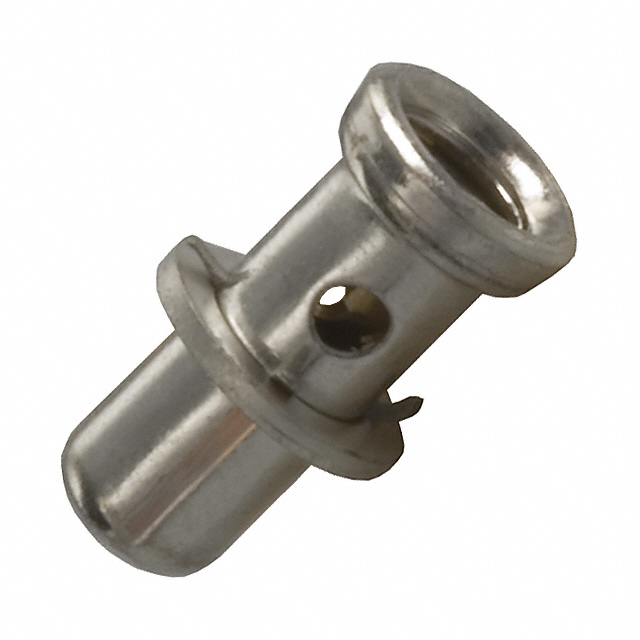

1-5380737-0
