6116640-1
CONN MOD JACK 8P8C R/A SHIELDEDManufacturer: TE Connectivity AMP Connectors
Categories: Modular Connector Jacks
Quality Control: Learn More

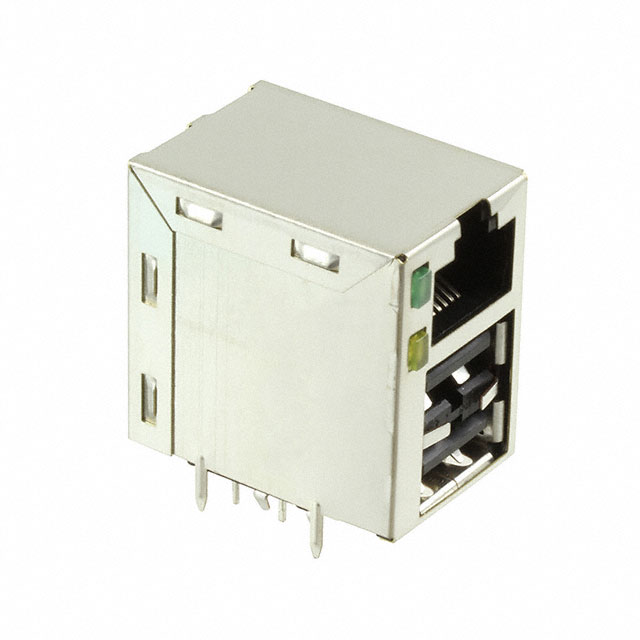

TE Connectivity AMP Connectors 6116640-1 is a shielded, right-angle modular jack with 8 positions and 8 contacts (8p8c/RJ45). This component is designed for Category 5 performance and features a gold contact finish over phosphor bronze contacts. It includes integrated board guide and board lock features for secure mounting via through-hole termination. The single port orientation is 90° angle, with the tab directed upwards. This connector is commonly utilized in networking infrastructure, telecommunications equipment, and industrial automation systems. Packaging is provided in trays.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Board Lock |
| Packaging | Tray |
| Connector Type | Jack with USB A, Dual |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Shielding | Shielded |
| Orientation | 90° Angle (Right) |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Termination | Solder |
| LED Color | Green - Yellow |
| Ingress Protection | - |
| Ratings | Cat5 |
| Tab Direction | Up |
| Contact Material | Phosphor Bronze |
| Number of Ports | 1 |
| Number of Rows | 1 |
