6116615-4
CONN MOD JACK 8P8C R/A SHIELDEDManufacturer: TE Connectivity AMP Connectors
Categories: Modular Connector Jacks
Quality Control: Learn More

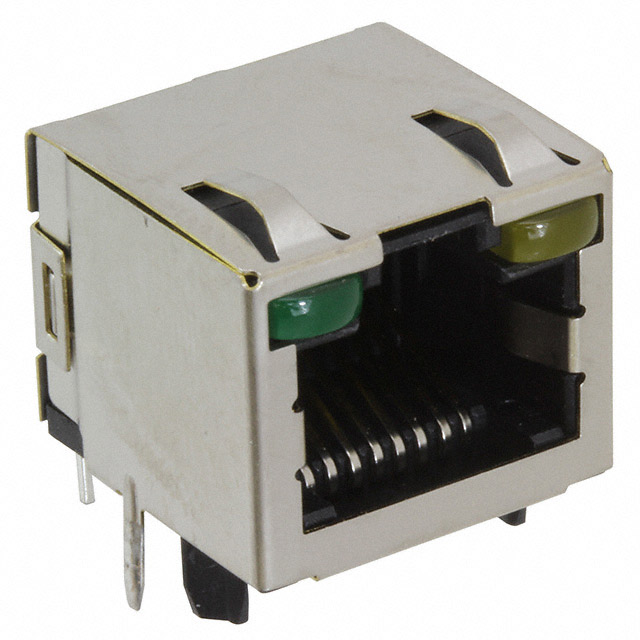

TE Connectivity AMP Connectors' 6116615-4 is a shielded, right-angle modular jack designed for robust networking applications. This 8p8c (RJ45, Ethernet) connector features gold-plated phosphor bronze contacts for reliable signal integrity and a durable construction suitable for through-hole mounting. The integrated EMI finger and shielding provide enhanced protection against electromagnetic interference, ensuring stable performance in electrically noisy environments. With a Cat5 rating and a compact, single-port design, this component is widely utilized in telecommunications, data communications, and industrial networking equipment where dependable Ethernet connectivity is critical. The inclusion of a board guide simplifies assembly and placement during manufacturing.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tray |
| Connector Type | Jack |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Shielding | Shielded, EMI Finger |
| Orientation | 90° Angle (Right) |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Termination | Solder |
| LED Color | Green - Yellow |
| Ingress Protection | - |
| Ratings | Cat5 |
| Tab Direction | Up |
| Contact Material | Phosphor Bronze |
| Number of Ports | 1 |
| Number of Rows | 1 |
