6116115-4
CONN MOD JACK 8P8C R/A SHIELDEDManufacturer: TE Connectivity AMP Connectors
Categories: Modular Connector Jacks
Quality Control: Learn More

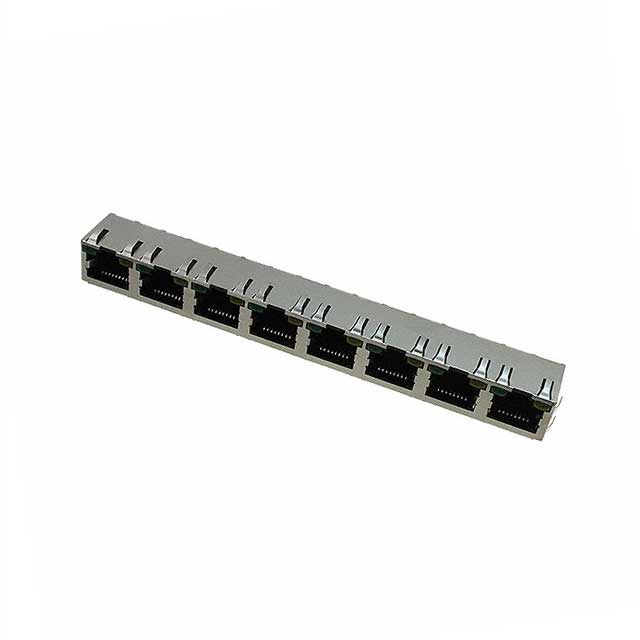

TE Connectivity AMP Connectors 6116115-4 is a shielded, right-angle modular jack connector designed for 8 Position 8 Contact (8p8c) Ethernet applications. This through-hole mounted component features a phosphor bronze contact material with gold plating for enhanced conductivity and durability. The connector is rated for Cat5 performance and includes EMI fingers for superior signal integrity in noisy environments. Its 90° orientation and board guide facilitate efficient PCB layout and assembly. The 6116115-4 is commonly utilized in networking infrastructure, telecommunications equipment, and industrial automation systems where reliable high-speed data transmission is critical. The integrated LEDs, green and yellow, provide status indication.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tray |
| Connector Type | Jack |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Shielding | Shielded, EMI Finger |
| Orientation | 90° Angle (Right) |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Termination | Solder |
| LED Color | Green - Yellow |
| Ingress Protection | - |
| Ratings | Cat5 |
| Tab Direction | Up |
| Contact Material | Phosphor Bronze |
| Number of Ports | 8 |
| Number of Rows | 1 |
