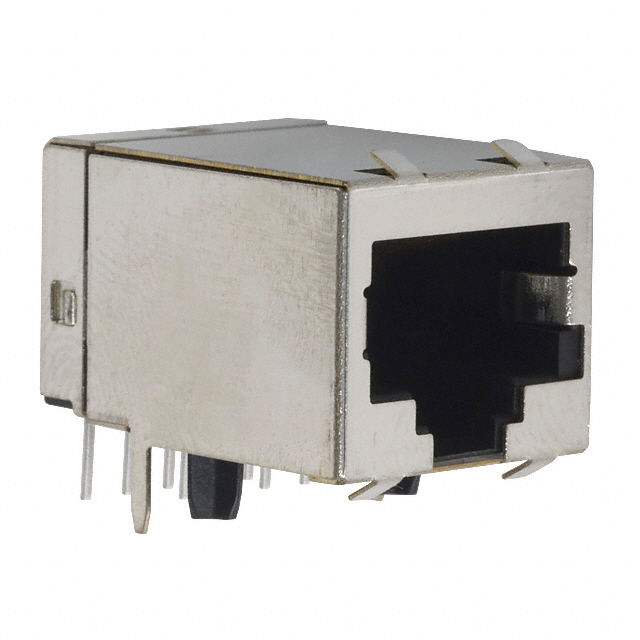

558344-1
CONN MOD JACK 8P8C R/A SHIELDEDManufacturer: TE Connectivity AMP Connectors
Categories: Modular Connector Jacks
Quality Control: Learn More
TE Connectivity AMP Connectors 558344-1 is a shielded, right-angle modular jack with 8 positions and 8 contacts (8p8c, RJ45). This component features a robust phosphor bronze contact material with gold plating for enhanced conductivity and durability. Designed for through-hole mounting, it includes a board guide for precise placement during assembly. The shielded construction, incorporating an EMI finger, provides effective signal integrity, making it suitable for high-speed data applications conforming to Cat5 ratings. Its 90° angle orientation and down tab direction are optimized for space-constrained PCB layouts. This connector is commonly utilized in networking infrastructure, telecommunications equipment, and industrial automation systems where reliable Ethernet connectivity is critical. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Bulk |
| Connector Type | Jack |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Shielding | Shielded, EMI Finger |
| Orientation | 90° Angle (Right) |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Termination | Solder |
| LED Color | Does Not Contain LED |
| Ingress Protection | - |
| Ratings | Cat5 |
| Tab Direction | Down |
| Contact Material | Phosphor Bronze |
| Number of Ports | 1 |
| Number of Rows | 1 |
