5520242-2
CONN MOD JACK 6P4C R/A UNSHLDManufacturer: TE Connectivity AMP Connectors
Categories: Modular Connector Jacks
Quality Control: Learn More

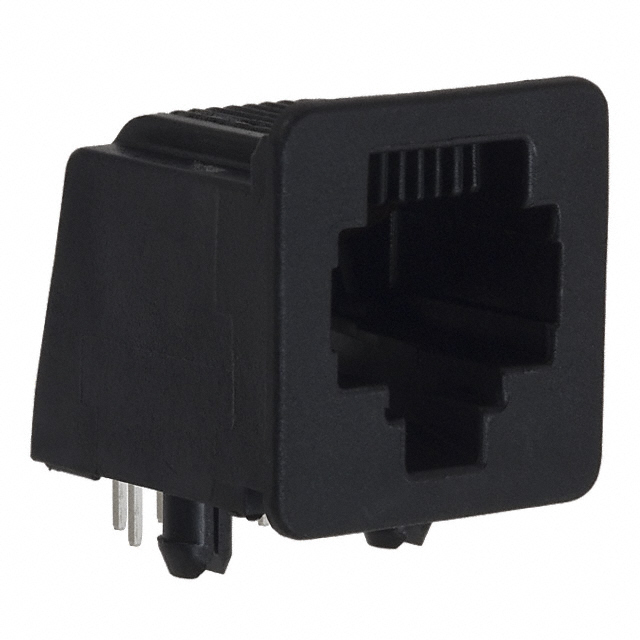

TE Connectivity AMP Connectors 5520242-2 is an unshielded, right-angle modular jack connector supporting 6 positions and 4 contacts (6p4c), commonly known for RJ11 and RJ14 interfaces. Designed for through-hole mounting, this component features a phosphor bronze contact material with a gold contact finish for reliable connectivity. The connector is rated for Category 3 performance, suitable for basic voice and data applications. It includes a board guide for enhanced mechanical stability during assembly. This connector is primarily utilized in telecommunications, networking equipment, and consumer electronics sectors where dependable modular connections are essential. The tab direction is down, and it terminates via solder.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tray |
| Connector Type | Jack |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Shielding | Unshielded |
| Orientation | 90° Angle (Right) |
| Number of Positions/Contacts | 6p4c (RJ11, RJ14) |
| Termination | Solder |
| LED Color | Does Not Contain LED |
| Ingress Protection | - |
| Ratings | Cat3 |
| Tab Direction | Down |
| Contact Material | Phosphor Bronze |
| Number of Ports | 1 |
| Number of Rows | 1 |
