5406967-8
CONN MOD JACK 8P8C R/A SHIELDEDManufacturer: TE Connectivity AMP Connectors
Categories: Modular Connector Jacks
Quality Control: Learn More

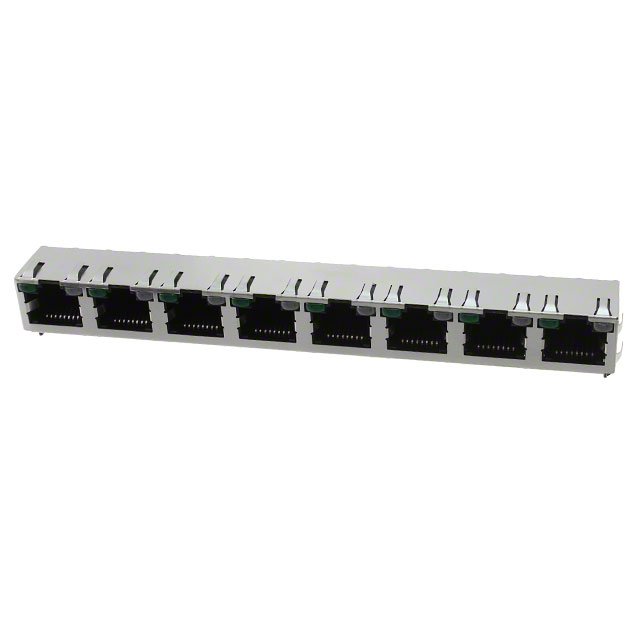

TE Connectivity AMP Connectors' 5406967-8 is a shielded, right-angle modular jack connector featuring 8 positions and 8 contacts (8p8c, RJ45, Ethernet). This component is designed for through-hole mounting and offers a one-row configuration. It includes a board guide for enhanced assembly stability. The contacts are constructed from phosphor bronze with a gold finish for reliable conductivity, and the connector is rated for Cat5 performance. The shielding incorporates an EMI finger to mitigate electromagnetic interference. The connector is supplied in tray packaging. This component finds application in networking equipment, telecommunications infrastructure, and industrial automation systems where robust and shielded Ethernet connectivity is required. The integrated LEDs are green, with an additional green/yellow indicator.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tray |
| Connector Type | Jack |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Shielding | Shielded, EMI Finger |
| Orientation | 90° Angle (Right) |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Termination | Solder |
| LED Color | Green - Green, Yellow |
| Ingress Protection | - |
| Ratings | Cat5 |
| Tab Direction | Up |
| Contact Material | Phosphor Bronze |
| Number of Ports | 8 |
| Number of Rows | 1 |
