406552-4
CONN MOD JACK R/A 8P8C SHIELDEDManufacturer: TE Connectivity AMP Connectors
Categories: Modular Connector Jacks
Quality Control: Learn More

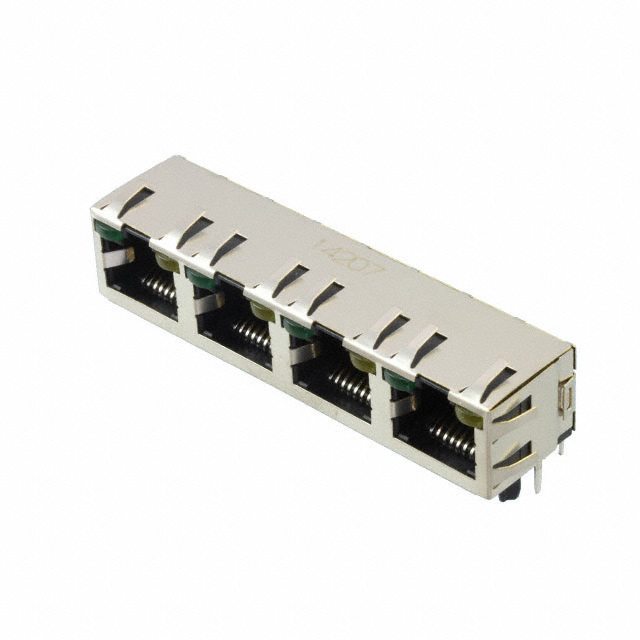

TE Connectivity AMP Connectors 406552-4 is a shielded, right-angle modular jack connector featuring 8 positions and 8 contacts (8p8c, RJ45, Ethernet). This component utilizes gold-plated phosphor bronze contacts and includes a board guide for enhanced mounting stability. Designed for through-hole termination via solder, it offers a Cat5 rating and incorporates EMI shielding with an integrated finger for robust signal integrity. The connector houses four ports and supports a single row configuration. Its application is prevalent in networking infrastructure, telecommunications equipment, and industrial automation systems where reliable high-speed data transmission is critical. The dual-color LED indicators (Green/Yellow) facilitate status monitoring.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tray |
| Connector Type | Jack |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Shielding | Shielded, EMI Finger |
| Orientation | 90° Angle (Right) |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Termination | Solder |
| LED Color | Green - Yellow |
| Ingress Protection | - |
| Ratings | Cat5 |
| Tab Direction | Up |
| Contact Material | Phosphor Bronze |
| Number of Ports | 4 |
| Number of Rows | 1 |
