406541-1
CONN MOD JACK 8P8C R/A SHIELDEDManufacturer: TE Connectivity AMP Connectors
Categories: Modular Connector Jacks
Quality Control: Learn More

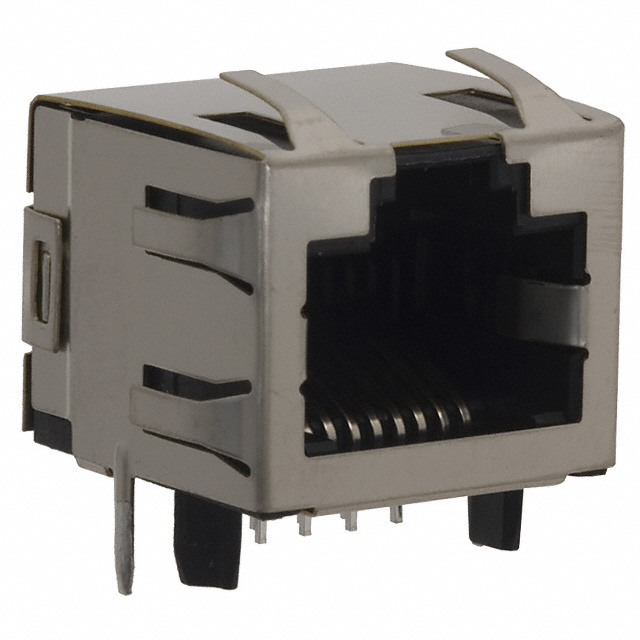

TE Connectivity AMP Connectors presents the 406541-1, a shielded, right-angle modular jack designed for robust Ethernet connectivity. This 8 position, 8 contact (8p8c) connector, also known as an RJ45, features a shielded design with EMI fingers to mitigate electromagnetic interference, ensuring signal integrity. The contact finish is gold over phosphor bronze, providing excellent conductivity and durability. Mounting is achieved via through-hole termination with solder connections. This component is suitable for applications requiring Cat5 performance and offers a board guide for precise placement. It is commonly utilized in networking equipment, industrial automation, and telecommunications infrastructure. The connector is presented in tray packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tray |
| Connector Type | Jack |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Shielding | Shielded, EMI Finger |
| Orientation | 90° Angle (Right) |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Termination | Solder |
| LED Color | Does Not Contain LED |
| Ingress Protection | - |
| Ratings | Cat5 |
| Tab Direction | Up |
| Contact Material | Phosphor Bronze |
| Number of Ports | 1 |
| Number of Rows | 1 |
