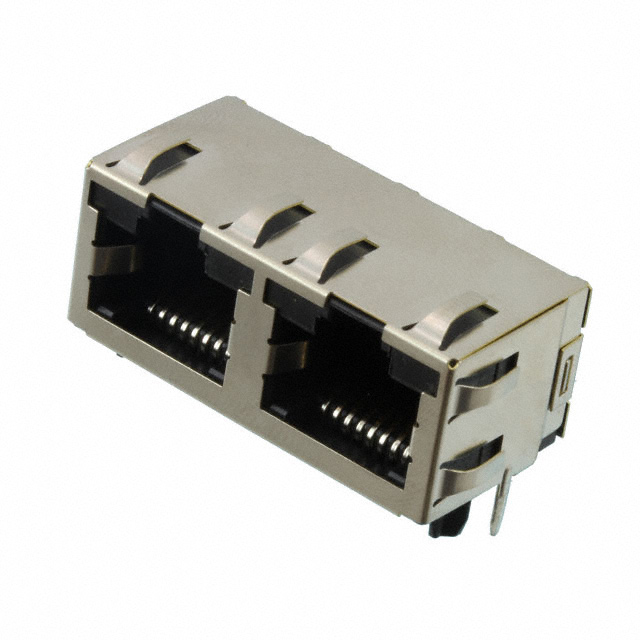

1116522-1
CONN MOD JACK 8P8C R/A SHLDManufacturer: TE Connectivity AMP Connectors
Categories: Modular Connector Jacks
Quality Control: Learn More
TE Connectivity AMP Connectors' modular jack, part number 1116522-1, is a high-performance 8P8C (RJ45, Ethernet) connector designed for demanding applications. This right-angle, shielded connector features EMI finger shielding for robust signal integrity and is rated for Cat5 performance. The through-hole mounting design, coupled with board guides, ensures secure and reliable installation onto PCBs. Constructed with gold-plated phosphor bronze contacts, it offers excellent conductivity and durability. This component is commonly utilized in networking infrastructure, industrial automation, and telecommunications equipment where reliable data transmission is critical. The unit is supplied in tray packaging.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tray |
| Connector Type | Jack |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Shielding | Shielded, EMI Finger |
| Orientation | 90° Angle (Right) |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Termination | Solder |
| LED Color | Does Not Contain LED |
| Ingress Protection | - |
| Ratings | Cat5 |
| Tab Direction | Up |
| Contact Material | Phosphor Bronze |
| Number of Ports | 2 |
| Number of Rows | 1 |
