1116132-1
CONN MOD JACK R/A 8P8C SHIELDEDManufacturer: TE Connectivity AMP Connectors
Categories: Modular Connector Jacks
Quality Control: Learn More

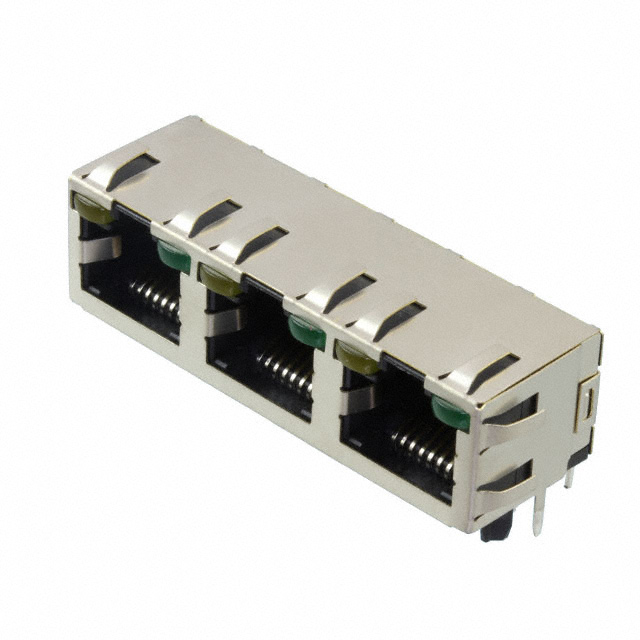

TE Connectivity AMP Connectors offers the 1116132-1, a shielded right-angle modular jack with 8 positions and 8 contacts (8p8c, RJ45, Ethernet). This component features a phosphor bronze contact material with gold plating for enhanced conductivity and durability. Designed for through-hole mounting, it includes a board guide for precise placement. The shielded construction, incorporating an EMI finger, is ideal for noise-sensitive applications. Rated for Cat5 performance, this connector is suitable for high-speed data transmission. The integrated yellow and green LEDs provide status indication. This component is commonly utilized in networking equipment, telecommunications infrastructure, and industrial automation systems where reliable Ethernet connectivity is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tray |
| Connector Type | Jack |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Shielding | Shielded, EMI Finger |
| Orientation | 90° Angle (Right) |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Termination | Solder |
| LED Color | Yellow - Green |
| Ingress Protection | - |
| Ratings | Cat5 |
| Tab Direction | Up |
| Contact Material | Phosphor Bronze |
| Number of Ports | 3 |
| Number of Rows | 1 |
