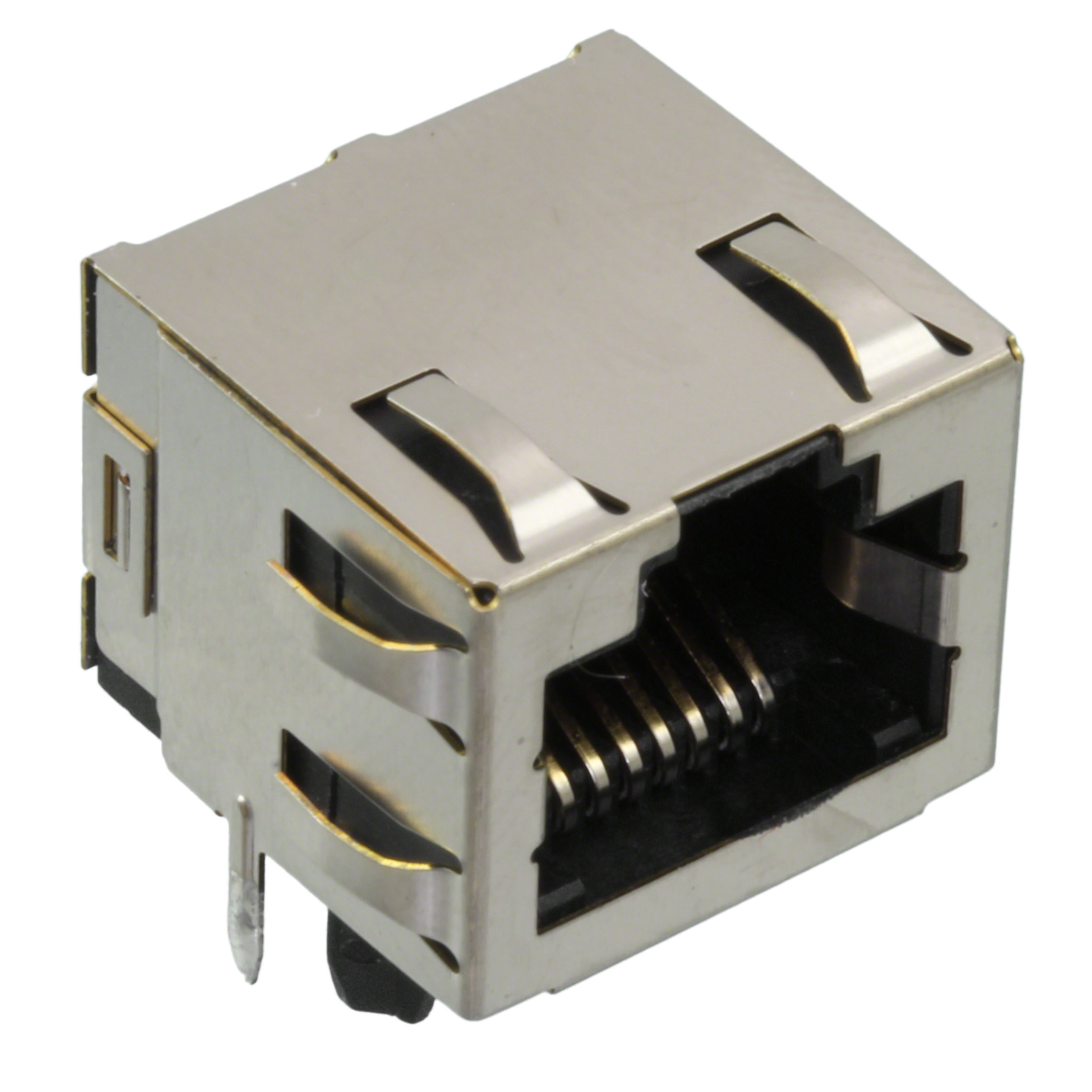

1-406541-4
CONN MOD JACK 8P8C R/A SHIELDEDManufacturer: TE Connectivity AMP Connectors
Categories: Modular Connector Jacks
Quality Control: Learn More
TE Connectivity AMP Connectors offers the 1-406541-4, a right-angle shielded modular jack designed for 8P8C (RJ45/Ethernet) connections. This component features a through-hole mounting type and a solder termination. The contacts are constructed from phosphor bronze with a gold plating for enhanced conductivity and durability. With a single port and 8 positions/8 contacts, this jack is rated for Cat5 performance. The shielded design incorporates an EMI finger for robust noise suppression, making it suitable for applications in networking, telecommunications, and industrial automation. The connector includes a board guide for secure placement and a shielded housing. The tab direction is oriented upwards.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tray |
| Connector Type | Jack |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Shielding | Shielded, EMI Finger |
| Orientation | 90° Angle (Right) |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Termination | Solder |
| LED Color | Does Not Contain LED |
| Ingress Protection | - |
| Ratings | Cat5 |
| Tab Direction | Up |
| Contact Material | Phosphor Bronze |
| Number of Ports | 1 |
| Number of Rows | 1 |
