6-6605786-1
1X1 MAG45(TM)7H2. 755. G/G RLEManufacturer: TE Connectivity AMP Connectors
Categories: Modular Connector Jacks With Magnetics
Quality Control: Learn More
1 Port RJ45Through Hole 10/100 Base-T, AutoMDIX
Additional Information
Series: Mag45RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Decoupling Capacitance |
| Packaging | Tray |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Shielding | Shielded, EMI Finger |
| Orientation | 90° Angle (Right) |
| Operating Temperature | 0°C ~ 70°C |
| Applications | 10/100 Base-T, AutoMDIX |
| Termination | Solder |
| LED Color | Green - Green |
| Number of Cores per Jack | 6 |
| Height Above Board | 0.555"" (14.10mm) |
| Tab Direction | Up |
| Contact Material | Phosphor Bronze |
| Number of Ports | 1 |
| Number of Rows | 1 |
Request a Quote
Clients Also Buy

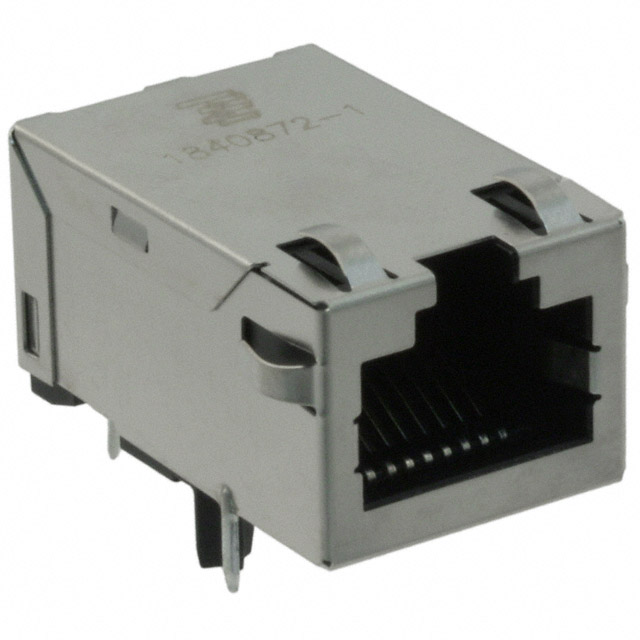

1840872-1
