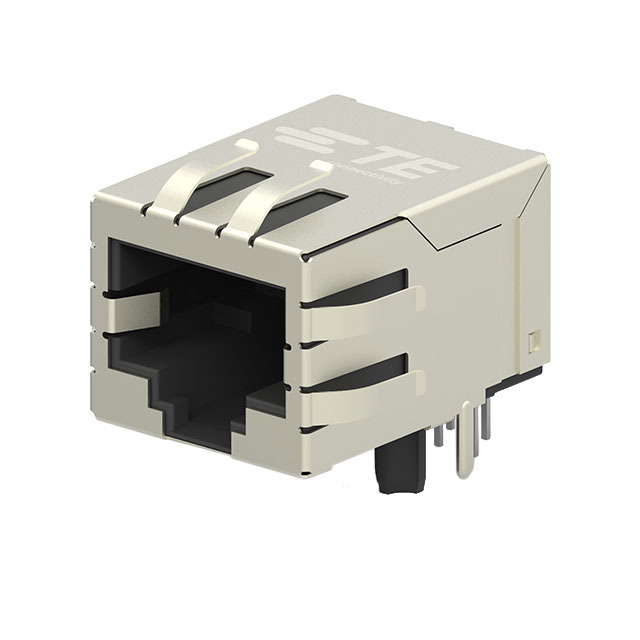

5-2301994-7
CONN JACK 1PORT 1000 BASE-T PCBManufacturer: TE Connectivity AMP Connectors
Categories: Modular Connector Jacks With Magnetics
Quality Control: Learn More
1 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Tray |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Shielding | Shielded, EMI Finger |
| Orientation | 90° Angle (Right) |
| Operating Temperature | -40°C ~ 85°C |
| Applications | 10/100/1000 Base-T, AutoMDIX |
| Termination | Solder |
| LED Color | Does Not Contain LED |
| Number of Cores per Jack | 8 |
| Height Above Board | 0.537"" (13.65mm) |
| Tab Direction | Down |
| Contact Material | Copper Alloy |
| Number of Ports | 1 |
| Number of Rows | 1 |
Request a Quote
Clients Also Buy

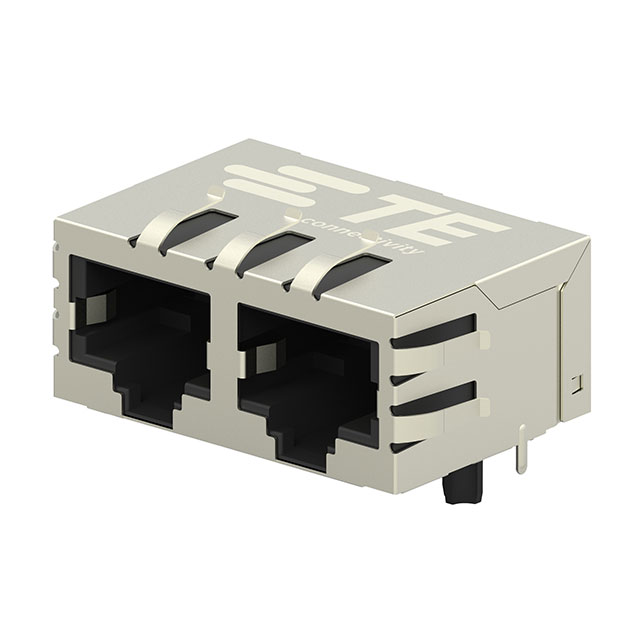

5-2301996-2
CONN JACK 2PORT 100 BASE-T PCB

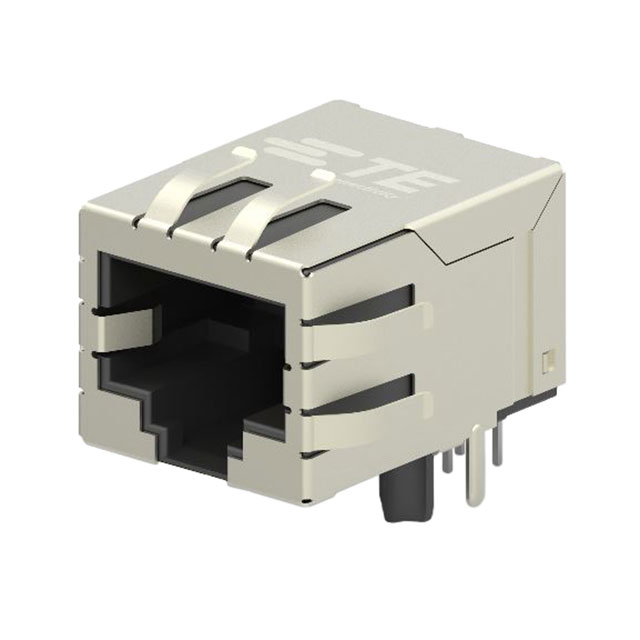

2301994-4
