2301996-5

Banner
productimage

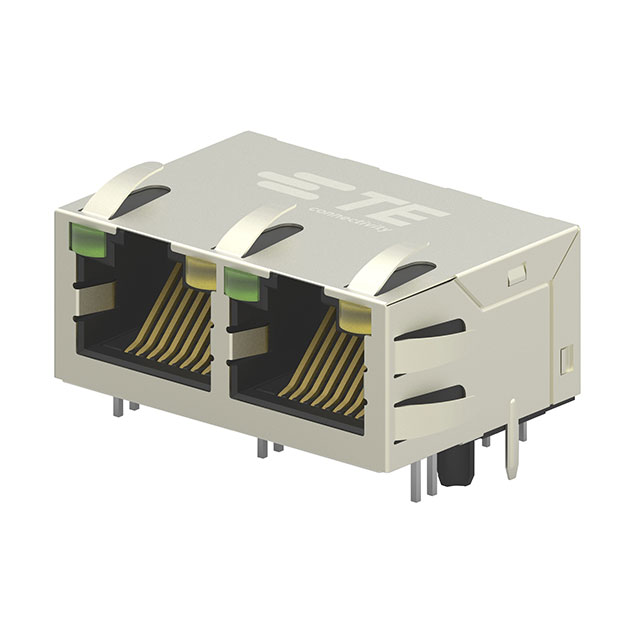

2301996-5

CONN JACK 2PORT 100 BASE-T PCB

Manufacturer: TE Connectivity AMP Connectors

Categories: Modular Connector Jacks With Magnetics

Quality Control: Learn More

2 Port RJ45Through Hole 10/100 Base-T, AutoMDIX

Additional Information

Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:
Download Free CAD Model:Link image
Technical Details:
FeaturesBoard Lock
PackagingTape & Reel (TR)
Connector TypeRJ45
Contact FinishGold
Mounting TypeThrough Hole
ShieldingShielded, EMI Finger
Orientation90° Angle (Right)
Operating Temperature-40°C ~ 85°C
Applications10/100 Base-T, AutoMDIX
TerminationSolder
LED ColorGreen, Yellow - Green, Yellow
Number of Cores per Jack4
Height Above Board0.531"" (13.49mm)
Tab DirectionUp
Contact MaterialCopper Alloy
Number of Ports2
Number of Rows1
