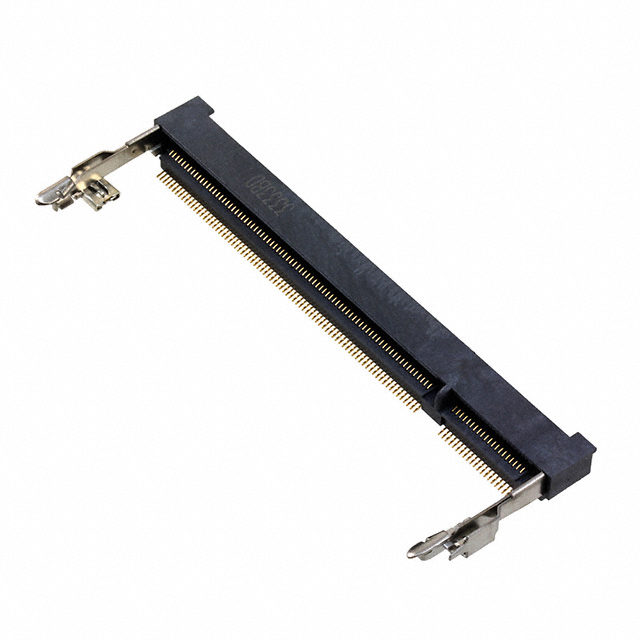

6-1473005-1
CONN SKT SODIMM 200POS R/A SMDManufacturer: TE Connectivity AMP Connectors
Categories: Inline Module Sockets
Quality Control: Learn More
TE Connectivity AMP Connectors offers the 6-1473005-1, a 200-position SODIMM socket designed for DDR SDRAM modules. This surface-mount component features a right-angle insertion angle of 25° and a standard top mounting orientation with board guides and latches for secure module retention. The socket accommodates a card thickness of 0.039" (1.00mm) and boasts a 0.205" (5.20mm) height profile. Its contacts are finished with a gold flash for reliable electrical connectivity. This socket is commonly utilized in computing and data processing applications where high-speed memory interfaces are critical. The component is supplied in tray packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Latches |
| Packaging | Tray |
| Contact Finish | Gold |
| Color | Gray |
| Mounting Type | Surface Mount |
| Memory Type | DDR SDRAM |
| Height | 0.205"" (5.20mm) |
| Card Thickness | 0.039"" (1.00mm) |
| Standards | - |
| Connector Style | SODIMM |
| Contact Finish Thickness | FLASH |
| Mounting Feature | Normal, Standard - Top |
| Number of Positions | 200 |
| Insertion Angle | 25° Angle |
