2-2013310-3
CONN SKT SODIMM 204POS SMDManufacturer: TE Connectivity AMP Connectors
Categories: Inline Module Sockets
Quality Control: Learn More

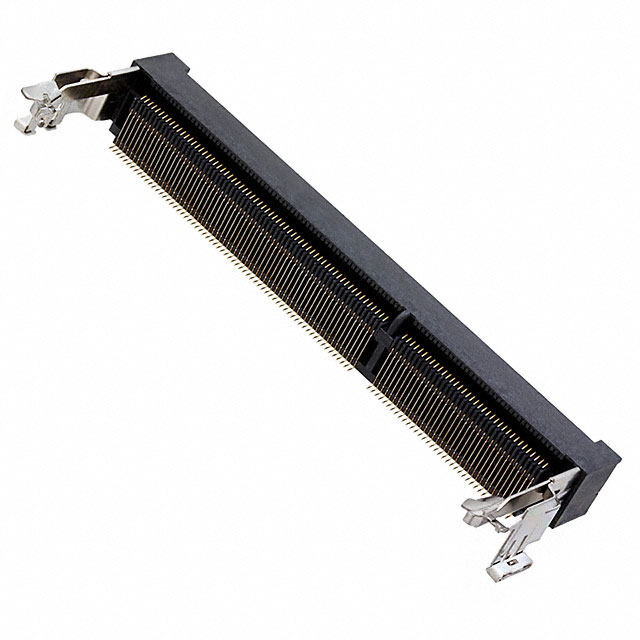

TE Connectivity AMP Connectors 2-2013310-3 is a 204-position Surface Mount SODIMM socket designed for DDR3 SDRAM modules. This electronic component features a standard top mounting type with a normal mounting feature and includes board guides and latches for secure module engagement. The socket is constructed with a black housing and gold-plated contacts, providing a contact finish thickness of 30.0µin (0.76µm) for reliable electrical performance. Its dimensions include a height of 0.362" (9.20mm) and it supports card thicknesses of 0.039" (1.00mm). The insertion angle is specified at 25°. This component is typically utilized in computing and networking applications requiring high-speed memory interfaces. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Latches |
| Packaging | Tape & Reel (TR) |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Surface Mount |
| Memory Type | DDR3 SDRAM |
| Height | 0.362"" (9.20mm) |
| Card Thickness | 0.039"" (1.00mm) |
| Standards | - |
| Connector Style | SODIMM |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Mounting Feature | Normal, Standard - Top |
| Number of Positions | 204 |
| Insertion Angle | 25° Angle |
