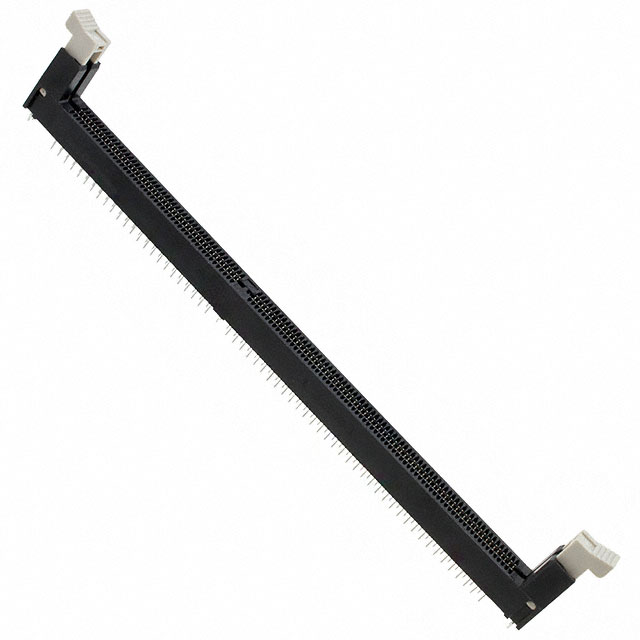

1932000-7
CONN SKT DIMM 240POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Inline Module Sockets
Quality Control: Learn More
TE Connectivity AMP Connectors DIMM Socket, part number 1932000-7, offers a 240-position solution for DDR3 SDRAM modules. Designed for through-hole mounting, this socket features a natural color and a robust PCB connection. The contact finish is gold with a thickness of 3.00µin (0.076µm), ensuring reliable signal integrity. Key features include board lock and latches for secure module retention. This component is suitable for applications requiring standard top mounting and supports a card thickness of 0.050" (1.27mm). It adheres to the MO-269 standard. This socket is commonly found in computing and server infrastructure.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Latches |
| Packaging | Tray |
| Contact Finish | Gold |
| Color | Natural |
| Mounting Type | Through Hole |
| Memory Type | DDR3 SDRAM |
| Height | - |
| Card Thickness | 0.050"" (1.27mm) |
| Standards | MO-269 |
| Connector Style | DIMM |
| Contact Finish Thickness | 3.00µin (0.076µm) |
| Mounting Feature | Normal, Standard - Top |
| Number of Positions | 240 |
| Insertion Angle | - |
