1735438-4
CONN SKT MINIDIMM 244POS R/A SMDManufacturer: TE Connectivity AMP Connectors
Categories: Inline Module Sockets
Quality Control: Learn More

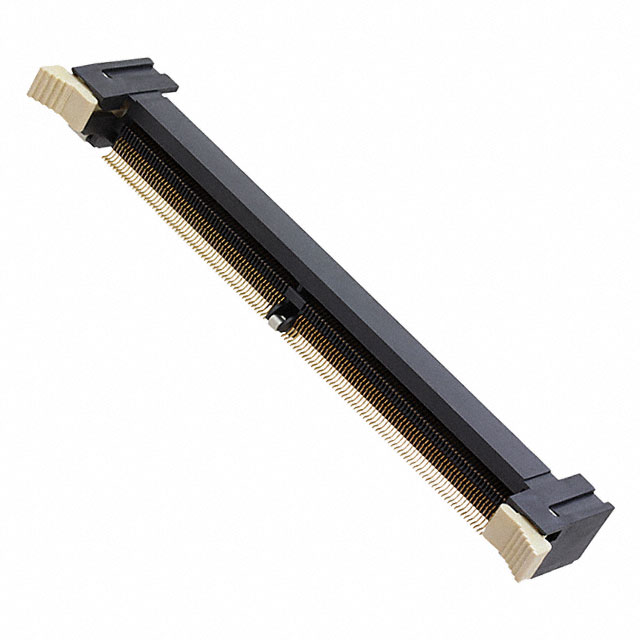

TE Connectivity AMP Connectors' 1735438-4 is a 244-position MiniDIMM socket designed for right-angle surface mounting. This socket supports DDR3 SDRAM memory modules with a standard card thickness of 0.062 inches (1.57mm). It features a black housing with gold-plated contacts offering 30.0µin (0.76µm) of contact finish thickness for optimal conductivity and durability. Key design elements include board guides for precise alignment and latches for secure module retention. The socket adheres to MO-244 standards and is suitable for applications in servers, workstations, and high-performance computing systems. Mounting is facilitated by normal, standard top-mount features.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Latches |
| Packaging | Tray |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Surface Mount |
| Memory Type | DDR3 SDRAM |
| Height | 0.385"" (9.79mm) |
| Card Thickness | 0.062"" (1.57mm) |
| Standards | MO-244 |
| Connector Style | MiniDIMM |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Mounting Feature | Normal, Standard - Top |
| Number of Positions | 244 |
| Insertion Angle | Right Angle |
