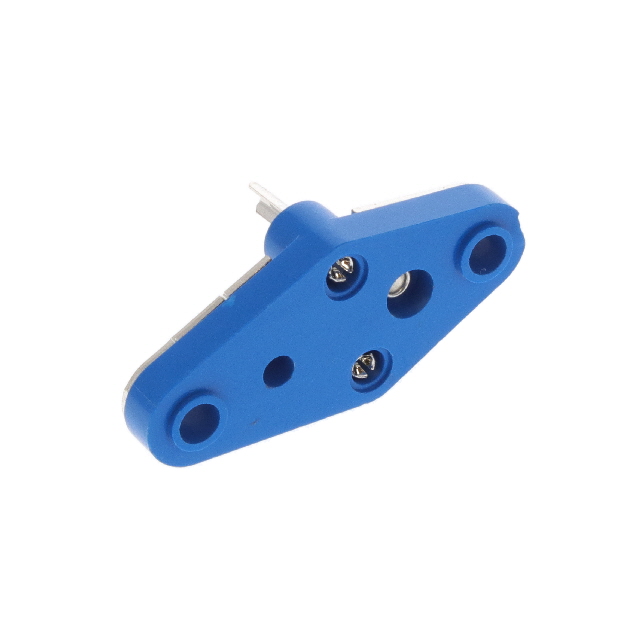

8080-1G24
CONN SOCKET TRANSIST TO-3 3POSManufacturer: TE Connectivity AMP Connectors
Categories: IC Sockets
Quality Control: Learn More
TE Connectivity AMP Connectors 8080-1G24 is a 3-position TO-3 transistor socket designed for chassis mounting. This component features a closed frame construction and utilizes Beryllium Copper for both mating and post contacts, ensuring robust electrical performance. The contact finish for both mating and post is Tin-Lead with a thickness of 20.0µin (0.51µm). The housing is constructed from Diallyl Phthalate (DAP), offering excellent dielectric properties and thermal stability across an operating temperature range of -55°C to 125°C. Termination is achieved via solder. This socket is suitable for applications in power electronics, industrial controls, and high-reliability systems where TO-3 packaged power transistors are employed.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Closed Frame |
| Packaging | Bulk |
| Mounting Type | Chassis Mount |
| Type | Transistor, TO-3 |
| Operating Temperature | -55°C ~ 125°C |
| Number of Positions or Pins (Grid) | 3 (Round) |
| Termination | Solder |
| Housing Material | Diallyl Phthalate (DAP) |
| Pitch - Mating | - |
| Contact Finish - Mating | Tin-Lead |
| Contact Finish Thickness - Mating | 20.0µin (0.51µm) |
| Contact Material - Mating | Beryllium Copper |
| Pitch - Post | - |
| Contact Finish - Post | Tin-Lead |
| Contact Finish Thickness - Post | 20.0µin (0.51µm) |
| Contact Material - Post | Beryllium Copper |
