8080-1G1-LF
CONN TRANSIST TO-3 3POS TINManufacturer: TE Connectivity AMP Connectors
Categories: IC Sockets
Quality Control: Learn More

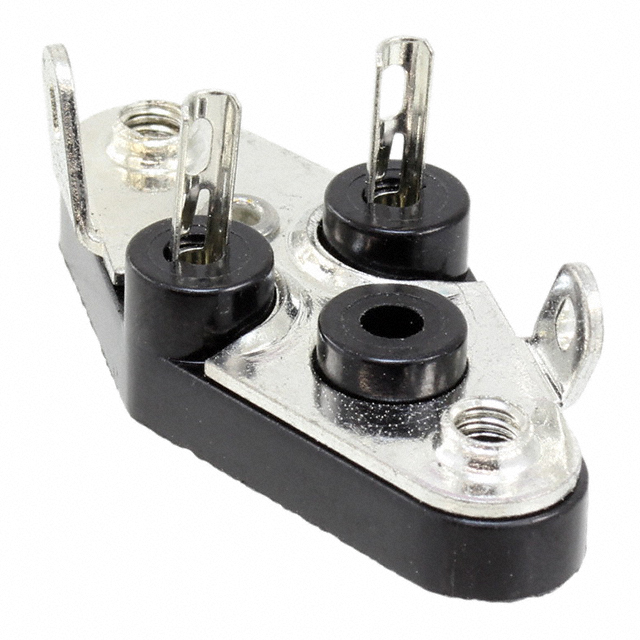

3 (Oval) Pos Transistor, TO-3 Socket Tin Chassis Mount
Additional Information
Series: 8080RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Closed Frame |
| Packaging | Bulk |
| Mounting Type | Chassis Mount |
| Type | Transistor, TO-3 |
| Operating Temperature | -55°C ~ 125°C |
| Number of Positions or Pins (Grid) | 3 (Oval) |
| Termination | Solder |
| Housing Material | Polytetrafluoroethylene (PTFE) |
| Pitch - Mating | - |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 200.0µin (5.08µm) |
| Contact Material - Mating | Beryllium Copper |
| Pitch - Post | - |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Material - Post | Beryllium Copper |
