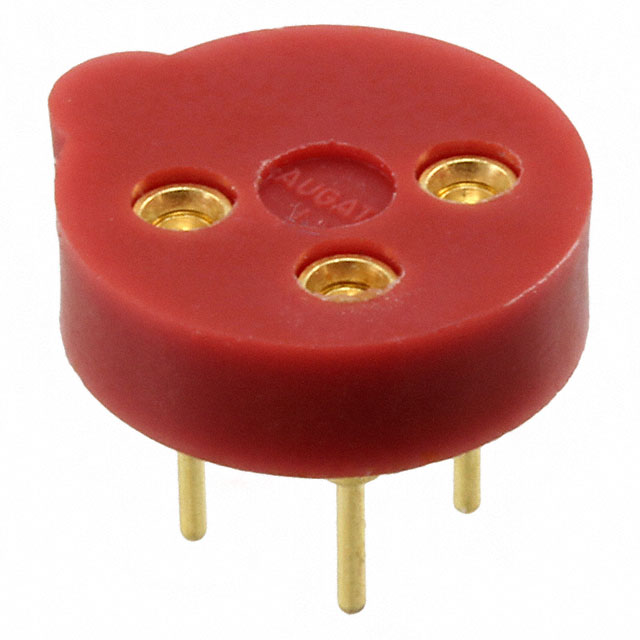

8059-2G1
CONN TRANSIST TO-5 3POS GOLDManufacturer: TE Connectivity AMP Connectors
Categories: IC Sockets
Quality Control: Learn More
TE Connectivity AMP Connectors 8059 Series TO-5 transistor socket. This through-hole component, part number 8059-2G1, features 3 round positions with gold-plated copper alloy contacts for both mating and post connections. The housing is constructed from polyamide (PA) nylon. Designed for reliable solder termination, this socket operates within a temperature range of -55°C to 125°C. It is commonly utilized in industrial and telecommunications applications requiring robust transistor mounting solutions. The component is supplied in bulk packaging.
Additional Information
Series: 8059RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Mounting Type | Through Hole |
| Type | Transistor, TO-5 |
| Operating Temperature | -55°C ~ 125°C |
| Number of Positions or Pins (Grid) | 3 (Round) |
| Termination | Solder |
| Housing Material | Polyamide (PA), Nylon |
| Pitch - Mating | - |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Material - Mating | Copper Alloy |
| Pitch - Post | - |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Post | - |
| Contact Material - Post | Copper Alloy |
