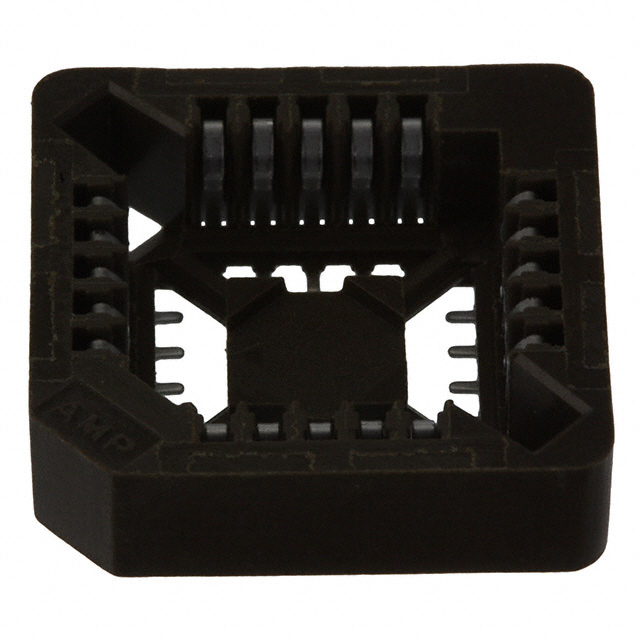

3-822516-3
CONN SOCKET PLCC 20POS TINManufacturer: TE Connectivity AMP Connectors
Categories: IC Sockets
Quality Control: Learn More
20 (4 x 5) Pos PLCC Socket Tin Surface Mount
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Closed Frame |
| Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount |
| Type | PLCC |
| Operating Temperature | - |
| Number of Positions or Pins (Grid) | 20 (4 x 5) |
| Termination | Solder |
| Housing Material | Thermoplastic |
| Pitch - Mating | 0.050"" (1.27mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Material - Mating | Phosphor Bronze |
| Pitch - Post | 0.050"" (1.27mm) |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Material - Post | Phosphor Bronze |
