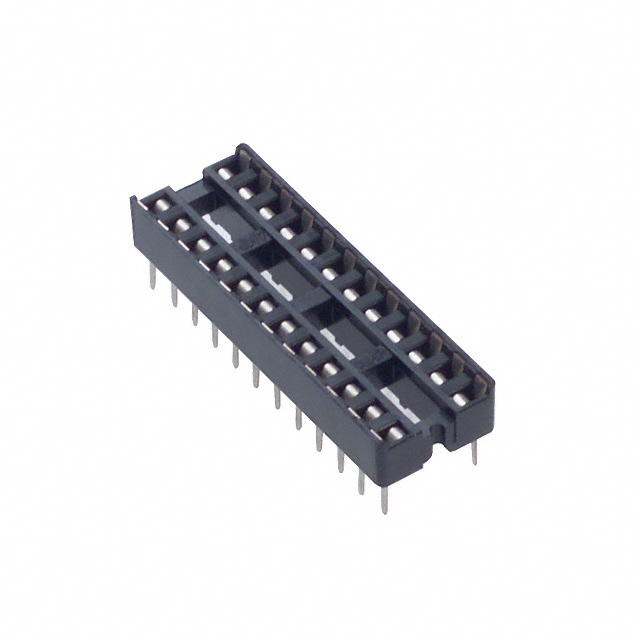

2-641932-2
CONN IC DIP SOCKET 24POS GOLDManufacturer: TE Connectivity AMP Connectors
Categories: IC Sockets
Quality Control: Learn More
TE Connectivity AMP Connectors Diplomate DL series part number 2-641932-2 is a 24-position dual-in-line (DIP) socket with 0.300" (7.62mm) row spacing. This through-hole mounted component features beryllium copper contacts with a 30µin gold mating and post finish. The open-frame thermoplastic housing ensures reliable performance across an operating temperature range of -55°C to 125°C. Designed for solder termination, this socket is suitable for applications in industrial automation, telecommunications, and consumer electronics. Supplied in tube packaging, the 0.100" (2.54mm) pitch facilitates dense board layouts.
Additional Information
Series: Diplomate DLRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Open Frame |
| Packaging | Tube |
| Mounting Type | Through Hole |
| Type | DIP, 0.3"" (7.62mm) Row Spacing |
| Operating Temperature | -55°C ~ 125°C |
| Number of Positions or Pins (Grid) | 24 (2 x 12) |
| Termination | Solder |
| Housing Material | Thermoplastic |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Material - Mating | Beryllium Copper |
| Pitch - Post | 0.100"" (2.54mm) |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Post | 30.0µin (0.76µm) |
| Contact Material - Post | Beryllium Copper |
Request a Quote
Clients Also Buy

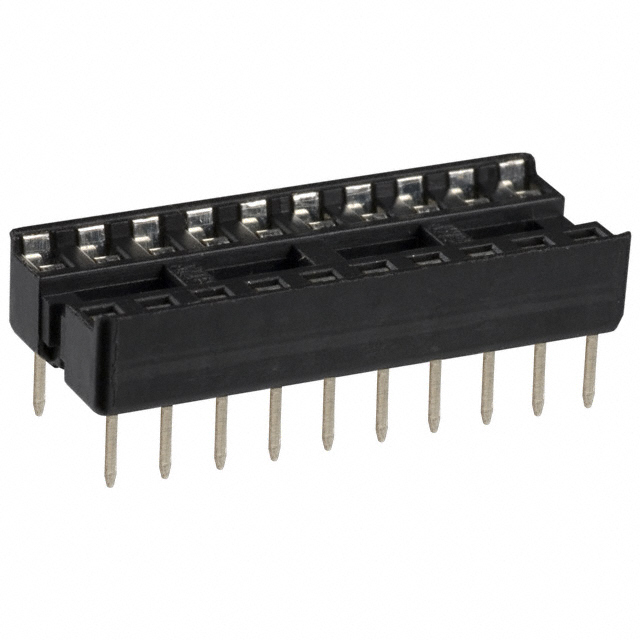

2-382568-0
CONN IC DIP SOCKET 20POS TIN
2-640361-4
CONN IC DIP SOCKET 24POS GOLD

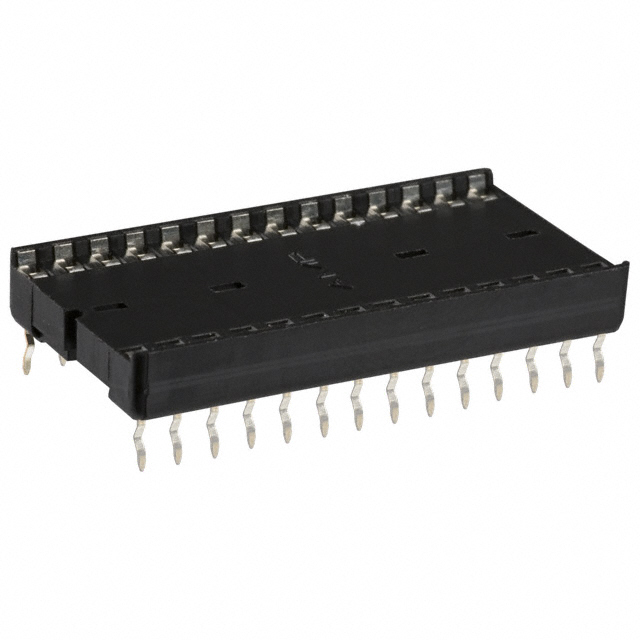

2-641267-1
