1-2324271-8

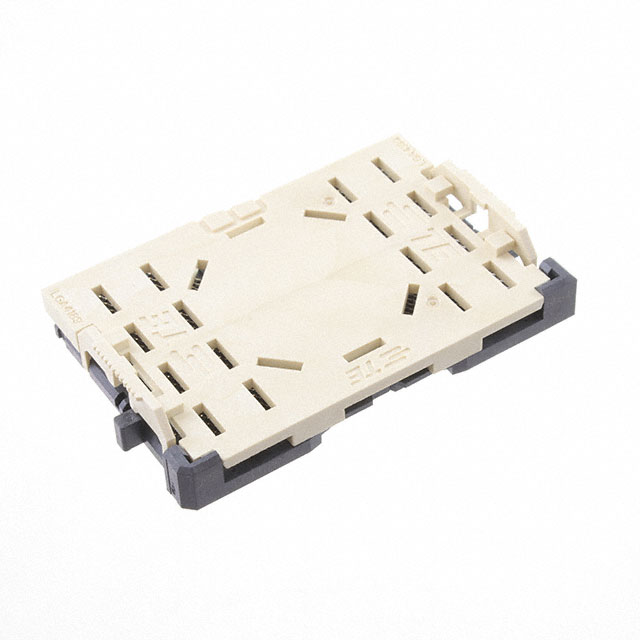

LEFT SEGMEN LGA4189-5 SOCKET-P5Manufacturer: TE Connectivity AMP Connectors
Categories: IC Sockets
Quality Control: Learn More
2092 Pos LGA 4189 Socket Gold Surface Mount
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 9 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Open Frame |
| Packaging | Tray |
| Mounting Type | Surface Mount |
| Type | LGA 4189 |
| Operating Temperature | -25°C ~ 100°C |
| Number of Positions or Pins (Grid) | 2092 |
| Termination | Solder |
| Housing Material | Thermoplastic |
| Pitch - Mating | 0.039"" (1.00mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Material - Mating | Copper Alloy |
| Pitch - Post | 0.034"" (0.86mm) |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Post | 15.0µin (0.38µm) |
| Contact Material - Post | Copper Alloy |
