2-1103111-3
INSERT FEMALE 40POS+1GND CRIMPManufacturer: TE Connectivity AMP Connectors
Categories: Heavy Duty Connector Inserts, Modules
Quality Control: Learn More

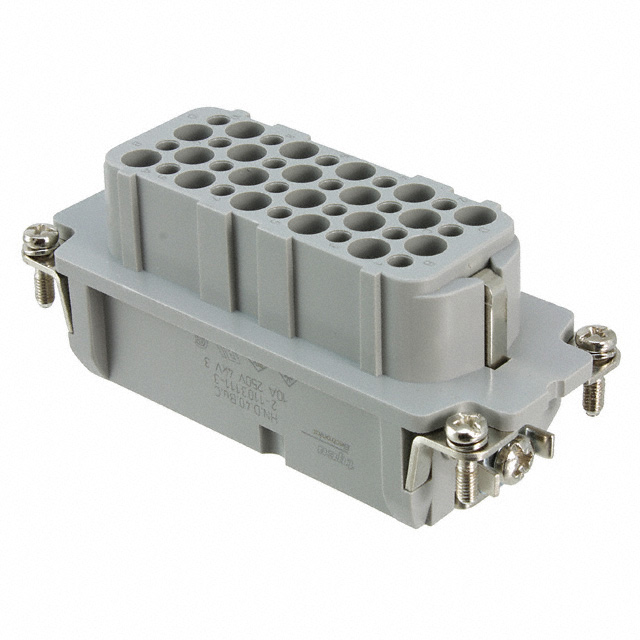

TE Connectivity AMP Connectors HN.D.40, HTS series female insert, part number 2-1103111-3, provides a 40-position plus ground configuration for robust interconnect solutions. This gray insert is designed for crimp termination, supporting HTS HN.D contact types and offering a 10A current rating and a 250V voltage rating. Engineered for demanding applications, it operates across a wide temperature range of -40°C to 125°C. The size 6 housing is suitable for industrial automation, medical equipment, and transportation systems requiring reliable and high-density connections. Supplied in bulk packaging.
Additional Information
Series: HN.D.40, HTSRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Connector Type | Insert without Contacts |
| Gender | Female |
| Voltage Rating | 250V |
| Current Rating (Amps) | 10A |
| Number of Positions | 40+Ground |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Crimp |
| Size | 6 |
| Contact Type | HTS HN.D |
Request a Quote
Clients Also Buy
2-1103110-3

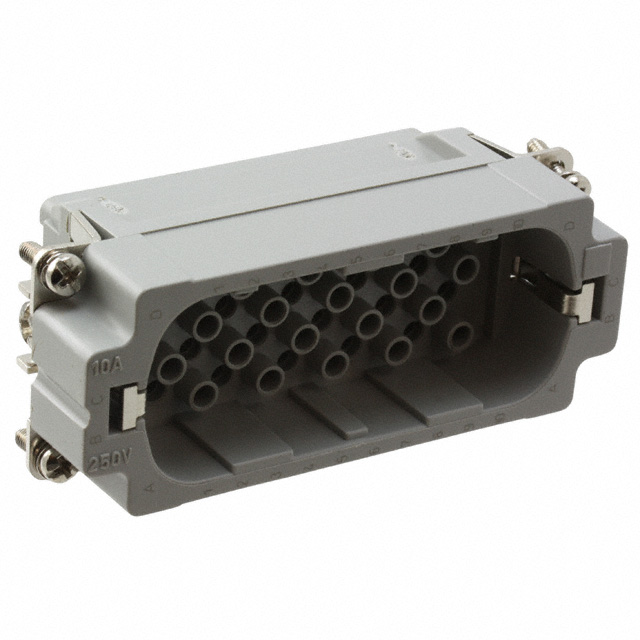

INSERT MALE 40POS+1GND CRIMP
