2-1106449-5
CONN HOOD SIDE ENTRY SZ6 M25Manufacturer: TE Connectivity AMP Connectors
Categories: Heavy Duty Connector Housings, Hoods, Bases
Quality Control: Learn More
TE Connectivity AMP Connectors HB.16, HTS Series, part number 2-1106449-5, is a Size 6 side-entry connector hood featuring an M25 cable entry. Constructed from durable aluminum with a gray powder-coated finish, this hood offers IP65 ingress protection, ensuring dust tightness and resistance to water jets. It is designed with two locking clips located on the base bottom for secure mating. The dimensions are 93.50mm in length, 43.00mm in width, and 60.00mm in height. This robust housing is suitable for demanding industrial applications requiring reliable environmental sealing.
Additional Information
Series: HB.16, HTSRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Box |
| Connector Type | Hood |
| Size / Dimension | 3.681"" L x 1.693"" W x 2.362"" H (93.50mm x 43.00mm x 60.00mm) |
| Style | Side Entry |
| Thread Size | M25 |
| Operating Temperature | - |
| Size | 6 |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (2) on Base Bottom |
| Housing Material | Aluminum |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
Request a Quote
Clients Also Buy
1-1102289-1
CONN HOOD SIDE ENTRY SZ6 PG21

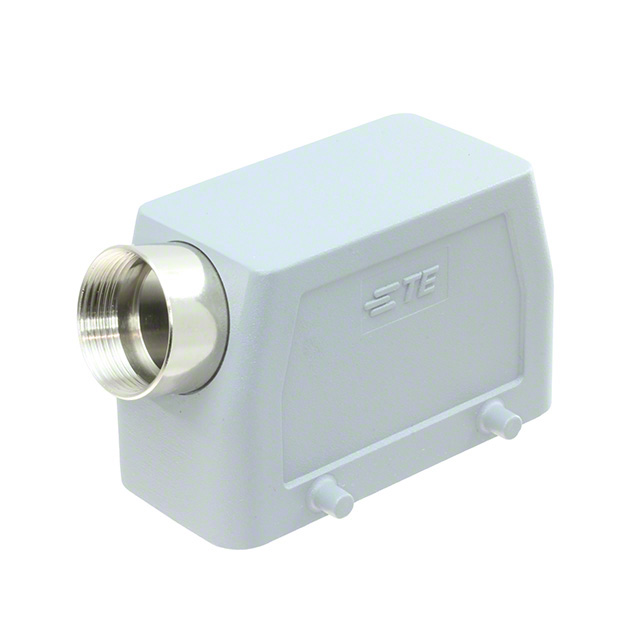

1-1102290-6
CONN HOOD SIDE ENTRY SZ6 PG21

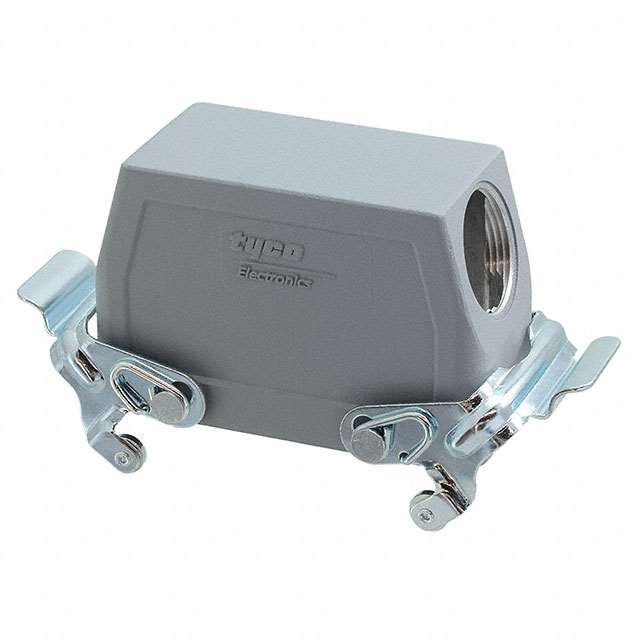

1-1102292-1
