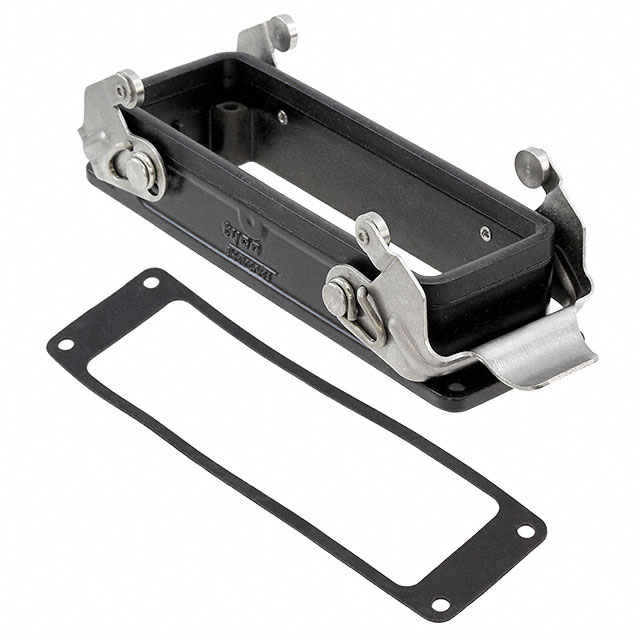

2-1102291-1
CONN BASE BOTTOM ENTRY SZ8Manufacturer: TE Connectivity AMP Connectors
Categories: Heavy Duty Connector Housings, Hoods, Bases
Quality Control: Learn More
TE Connectivity AMP Connectors HB-K, HTS series, part number 2-1102291-1, is a Size 8, bottom entry panel mount connector base. Constructed from die-cast aluminum alloy with an aluminum oxide finish, this housing provides robust protection with an IP65 rating for dust tightness and water resistance. It features two locking clips on the base bottom for secure mating. The operating temperature range is -40°C to 80°C. This component is typically utilized in industrial automation, machinery, and transportation sectors where reliable, protected connections are paramount.
Additional Information
Series: HB-K, HTSRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Base - Panel Mount |
| Size / Dimension | 5.512"" L x 1.713"" W x 1.122"" H (140.00mm x 43.50mm x 28.50mm) |
| Style | Bottom Entry |
| Thread Size | - |
| Operating Temperature | -40°C ~ 80°C |
| Size | 8 |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (2) on Base Bottom |
| Housing Material | Aluminum Alloy, Die Cast |
| Housing Color | Black |
| Housing Finish | Aluminum Oxide |
