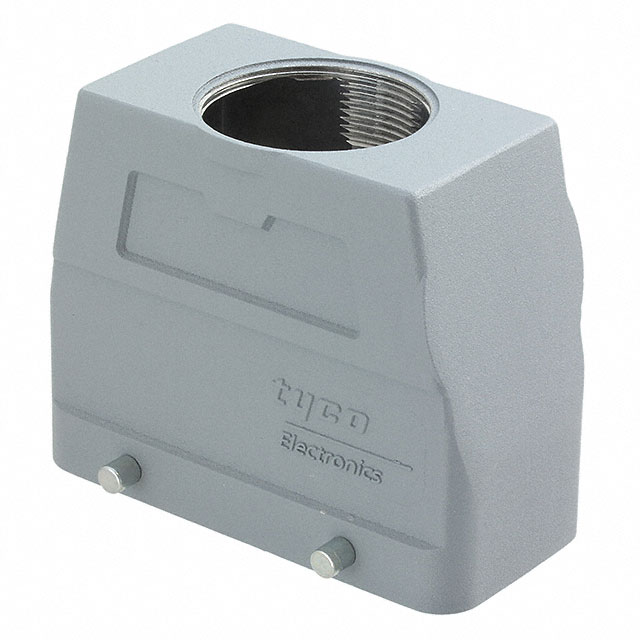

1102920-1
CONN HOOD SIZE 6Manufacturer: TE Connectivity AMP Connectors
Categories: Heavy Duty Connector Housings, Hoods, Bases
Quality Control: Learn More
TE Connectivity AMP Connectors HD.40, HTS series hood connector, part number 1102920-1, is a Size 6 top entry hood designed for robust industrial applications. Constructed from die-cast aluminum alloy with a gray powder-coated finish, this component offers IP65 ingress protection, ensuring dust tightness and resistance to water jets. It features two locking clips on the base bottom for secure assembly. The M40 thread size accommodates standard M40 cable glands. Typical applications for this series of heavy-duty connectors include industrial machinery, automation systems, and transportation control. This bulk-packaged component provides reliable environmental sealing and mechanical protection for sensitive connections in demanding environments.
Additional Information
Series: HD.40, HTSRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Hood |
| Size / Dimension | 3.681"" L x 1.693"" W x 2.992"" H (93.50mm x 43.00mm x 76.00mm) |
| Style | Top Entry |
| Thread Size | M40 |
| Operating Temperature | - |
| Size | 6 |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (2) on Base Bottom |
| Housing Material | Aluminum Alloy, Die Cast |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
