1102703-1
CONN BASE BOTTOM ENTRY SZ1 IP68Manufacturer: TE Connectivity AMP Connectors
Categories: Heavy Duty Connector Housings, Hoods, Bases
Quality Control: Learn More

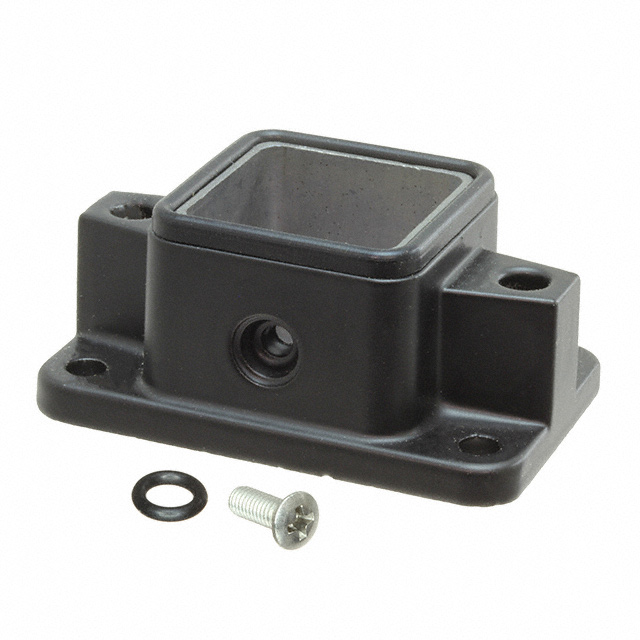

TE Connectivity AMP Connectors EMV, HTS series 1102703-1 is a Size 1, bottom entry, panel mount connector base. This robust housing is constructed from aluminum with a Chromite TCP Passivation finish, ensuring durability and corrosion resistance. Rated IP68, it provides excellent protection against dust ingress and immersion in water, making it suitable for demanding environments. The base features screw locks on the hood for secure assembly and operates within an ambient temperature range of -40°C to 80°C. This component finds application in industrial automation, heavy machinery, and transportation sectors where reliable connectivity under harsh conditions is paramount.
Additional Information
Series: EMV, HTSRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Box |
| Connector Type | Base - Panel Mount |
| Size / Dimension | 2.008"" L x 1.260"" W x 0.866"" H (51.00mm x 32.00mm x 22.00mm) |
| Style | Bottom Entry |
| Thread Size | - |
| Operating Temperature | -40°C ~ 80°C |
| Size | 1 |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Lock Location | Screw Locks on Hood |
| Housing Material | Aluminum |
| Housing Color | Silver |
| Housing Finish | Chromite TCP Passivation |
Request a Quote
Clients Also Buy

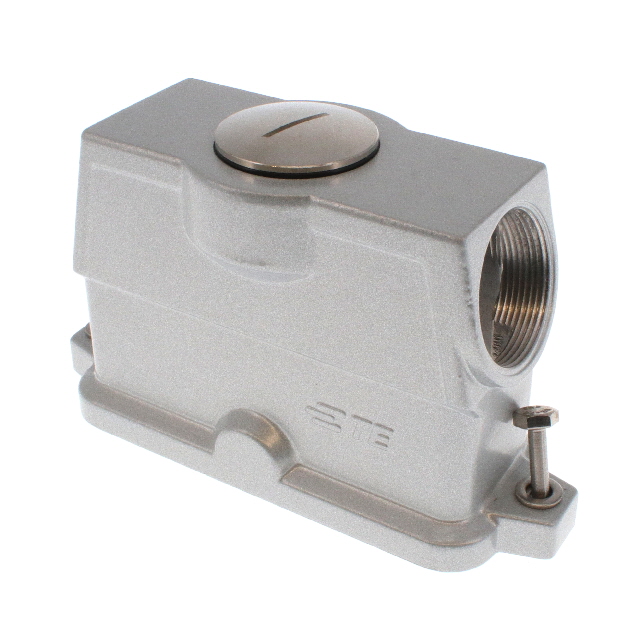

1102755-3
CONN HOOD SIDE ENTRY SZ8 PG29

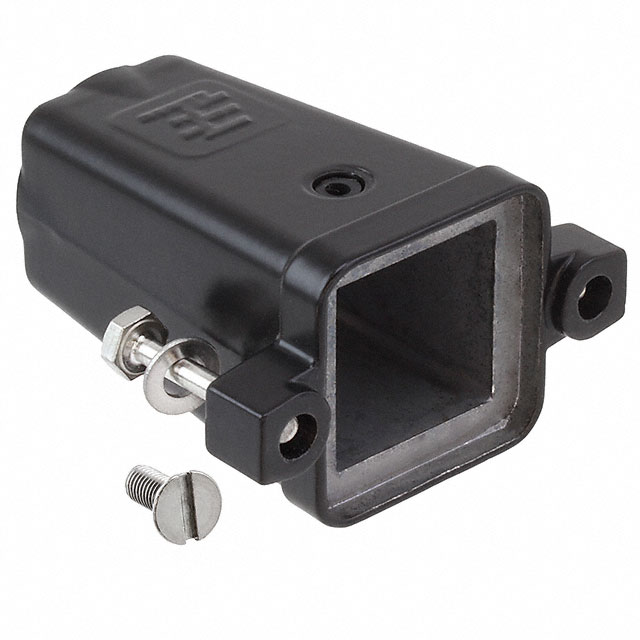

1106402-2
