8136-475G4
CONN PLUG MALE PIN 8POS GOLDManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Specialty Pin
Quality Control: Learn More
TE Connectivity AMP Connectors 8136 series plug connector, part number 8136-475G4. This 8-position male pin connector features gold-plated contacts for reliable signal integrity. Designed with a 0.100" (2.54mm) pitch and 0.300" (7.62mm) row spacing, it offers a compact footprint for dense board layouts. The through-hole mounting type and solder termination ensure robust mechanical and electrical connections. This component is suitable for applications in industrial automation, telecommunications, and consumer electronics, where dependable interconnectivity is paramount. The black housing provides robust protection for the internal contacts.
Additional Information
Series: 8136RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Programmable |
| Packaging | Tube |
| Connector Type | Plug |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Through Hole |
| Number of Positions | 8 |
| Pitch | 0.100"" (2.54mm) |
| Contact Type | - |
| Row Spacing | 0.300"" (7.62mm) |
| Termination | Solder |
| Contact Finish Thickness | - |
| Number of Rows | 2 |
Request a Quote
Clients Also Buy

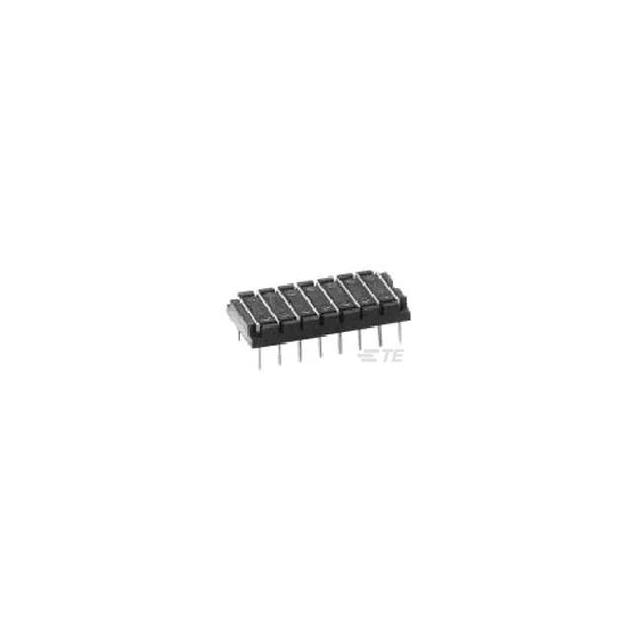

1-1437507-5
