829264-8
CONN RCPT 16POS 0.1 GOLD PCBManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Receptacles, Female Sockets
Quality Control: Learn More
16 Position Receptacle Connector 0.100"" (2.54mm) Through Hole Gold
Additional Information
Series: AMPMODU HV-100RoHS Status: Request inventory verificationManufacturer Lead Time: 33 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Receptacle |
| Voltage Rating | - |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole |
| Number of Positions | 16 |
| Style | Board to Board |
| Operating Temperature | - |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Mated Stacking Heights | - |
| Insulation Color | Green |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 31.5µin (0.80µm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.120"" (3.05mm) |
| Insulation Height | 0.244"" (6.20mm) |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Number of Rows | 2 |
Request a Quote
Clients Also Buy
1-215297-4
CONN RCPT 14POS 0.1 GOLD PCB

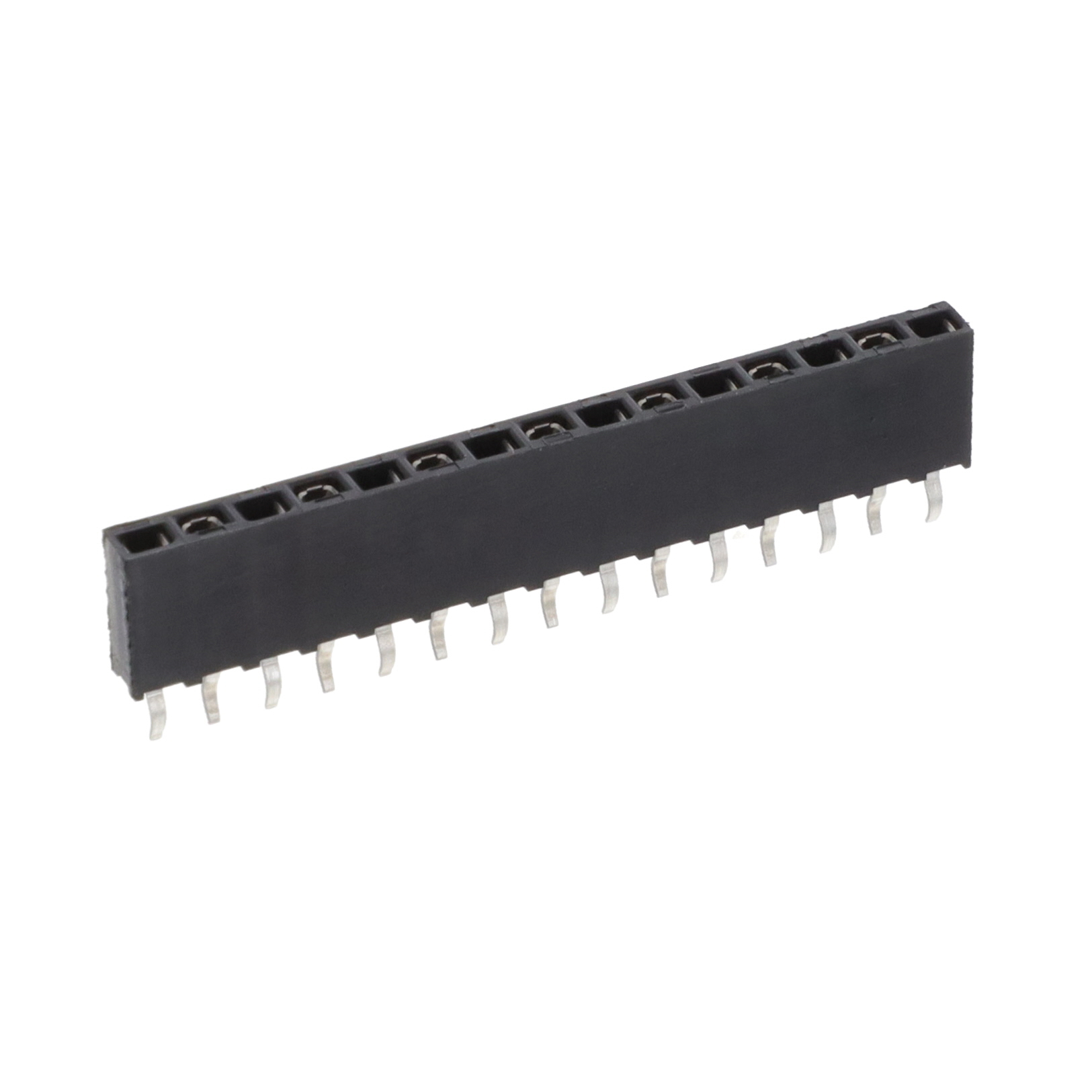

1-215297-5
