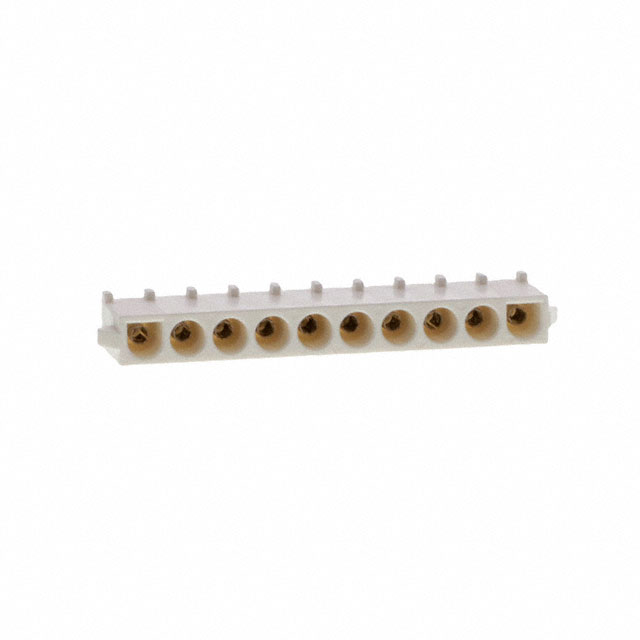

826852-3
CONN HDR 10POS 0.25 TIN PCBManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Receptacles, Female Sockets
Quality Control: Learn More
10 Position Header Connector 0.250"" (6.35mm) Through Hole Tin
Additional Information
Series: Universal MATE-N-LOKRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole |
| Number of Positions | 10 |
| Style | Board to Cable/Wire |
| Operating Temperature | - |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Mated Stacking Heights | - |
| Insulation Color | Natural |
| Pitch - Mating | 0.250"" (6.35mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.146"" (3.70mm) |
| Insulation Height | 0.581"" (14.75mm) |
| Row Spacing - Mating | - |
| Number of Rows | 1 |
