8-534998-0
CONN RCPT 60POS 0.1 GOLD PCBManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Receptacles, Female Sockets
Quality Control: Learn More

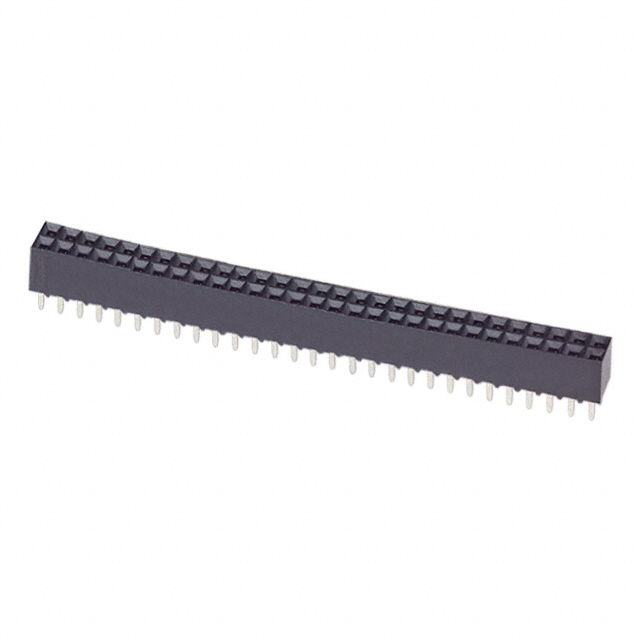

60 Position Receptacle Connector 0.100"" (2.54mm) Through Hole Gold
Additional Information
Series: AMPMODU Mod IVRoHS Status: Request inventory verificationManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Connector Type | Receptacle |
| Voltage Rating | - |
| Current Rating (Amps) | 2A |
| Mounting Type | Through Hole |
| Number of Positions | 60 |
| Style | Board to Board or Cable |
| Operating Temperature | -65°C ~ 125°C |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.125"" (3.18mm) |
| Insulation Height | 0.265"" (6.73mm) |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Number of Rows | 2 |
