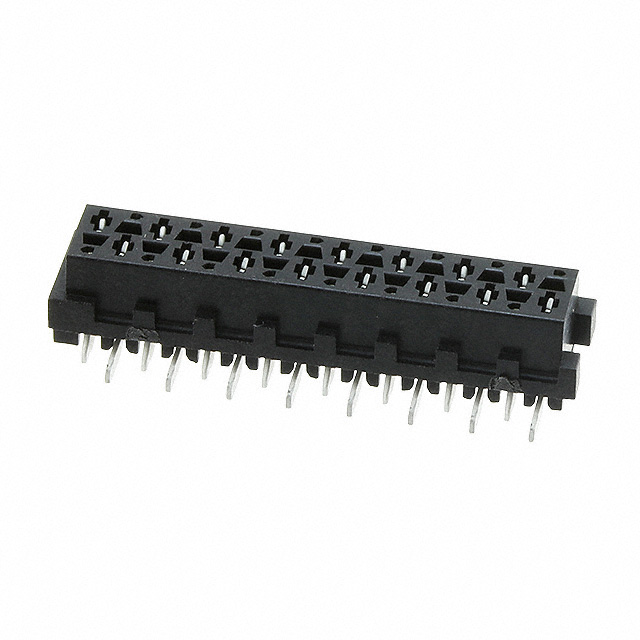

8-2178711-6
CONN RCPT 16POS 0.1 TIN SMDManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Receptacles, Female Sockets
Quality Control: Learn More
TE Connectivity AMP Connectors Micro-MaTch series receptacle, part number 8-2178711-6, offers a 16-position, 2-row configuration with a 0.100" (2.54mm) mating pitch. This surface mount connector features a tin contact finish for reliable mating and post connections, with a mating contact thickness of 118.1µin (3.00µm). Designed for automated assembly, it includes pick and place features and is supplied on tape and reel for efficient manufacturing processes. The connector has a voltage rating of 100VDC and an operating temperature range of -30°C to 85°C. Suitable for board-to-board or cable applications, its black insulation and 0.209" (5.30mm) insulation height make it a versatile component in industrial and consumer electronics.
Additional Information
Series: Micro-MaTchRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Pick and Place |
| Packaging | Tape & Reel (TR) |
| Connector Type | Receptacle |
| Voltage Rating | 100VDC |
| Current Rating (Amps) | - |
| Mounting Type | Surface Mount |
| Number of Positions | 16 |
| Style | Board to Board or Cable |
| Operating Temperature | -30°C ~ 85°C |
| Contact Type | Forked |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Mated Stacking Heights | - |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 118.1µin (3.00µm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | - |
| Insulation Height | 0.209"" (5.30mm) |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Number of Rows | 2 |
