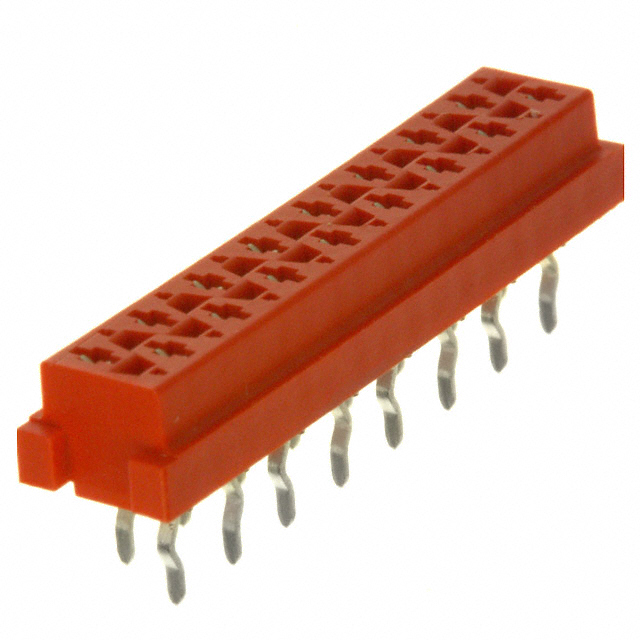

8-215079-6
CONN RCPT 16POS 0.1 TIN PCBManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Receptacles, Female Sockets
Quality Control: Learn More
16 Position Receptacle Connector 0.100"" (2.54mm) Through Hole Tin
Additional Information
Series: Micro-MaTchRoHS Status: ROHS3 CompliantManufacturer Lead Time: 47 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Connector Type | Receptacle |
| Voltage Rating | 100VDC |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole |
| Number of Positions | 16 |
| Style | Board to Board or Cable |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Forked |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Kinked Pin, Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - |
| Insulation Color | Red |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.122"" (3.10mm) |
| Insulation Height | 0.157"" (4.00mm) |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Number of Rows | 2 |
