7-917570-2
CONN HDR 12POS 0.059 TIN SMD R/AManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Receptacles, Female Sockets
Quality Control: Learn More
12 Position Header Connector 0.059"" (1.50mm) Surface Mount, Right Angle Tin
Additional Information
Series: Mini VPRoHS Status: ROHS3 CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | 1A |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 12 |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Female Blade Socket |
| Fastening Type | Locking Ramp |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - |
| Insulation Color | Black |
| Pitch - Mating | 0.059"" (1.50mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 78.7µin (2.00µm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | - |
| Insulation Height | 0.128"" (3.25mm) |
| Row Spacing - Mating | - |
| Number of Rows | 1 |
Request a Quote
Clients Also Buy

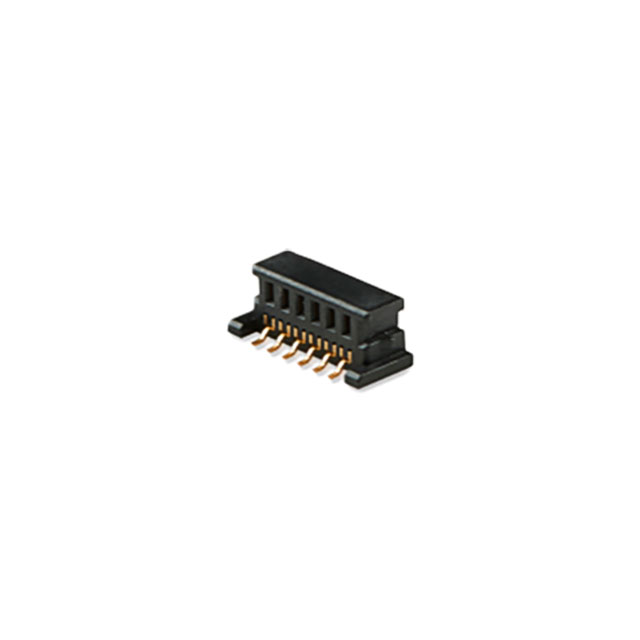

1747468-1
CONN HEADER SMD R/A 6POS 1MM

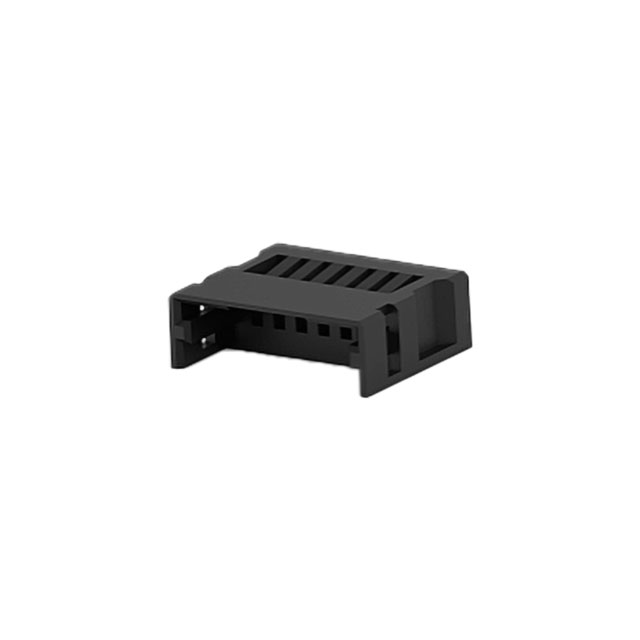

2040974-1
