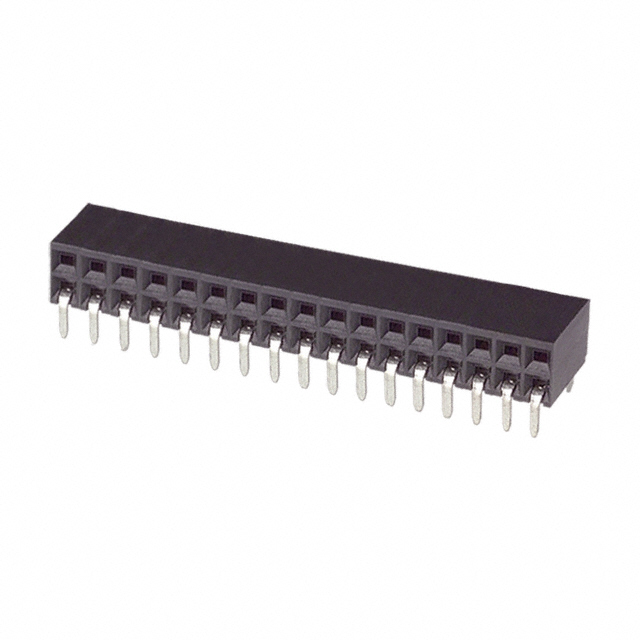

535512-4
CONN RCPT 34POS 0.1 GOLD PCB R/AManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Receptacles, Female Sockets
Quality Control: Learn More
TE Connectivity AMP Connectors AMPMODU Mod II receptacle, part number 535512-4, offers a 34-position, 2-row configuration with a 0.100" (2.54mm) pitch. This right-angle, through-hole mounted connector features female sockets with gold mating contact finish for 30.0µin (0.76µm) thickness, ensuring reliable connectivity. The tin-lead post finish complements the gold plating. Designed for a 2A current rating and operating temperatures from -55°C to 125°C, this component is suitable for demanding applications. Its UL94 V-0 material flammability rating and robust push-pull fastening type contribute to its suitability in industrial automation, consumer electronics, and automotive sectors.
Additional Information
Series: AMPMODU Mod IIRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Connector Type | Receptacle |
| Voltage Rating | - |
| Current Rating (Amps) | 2A |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 34 |
| Style | - |
| Operating Temperature | -55°C ~ 125°C |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Length - Post | 0.115"" (2.92mm) |
| Insulation Height | 0.238"" (6.05mm) |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Number of Rows | 2 |
