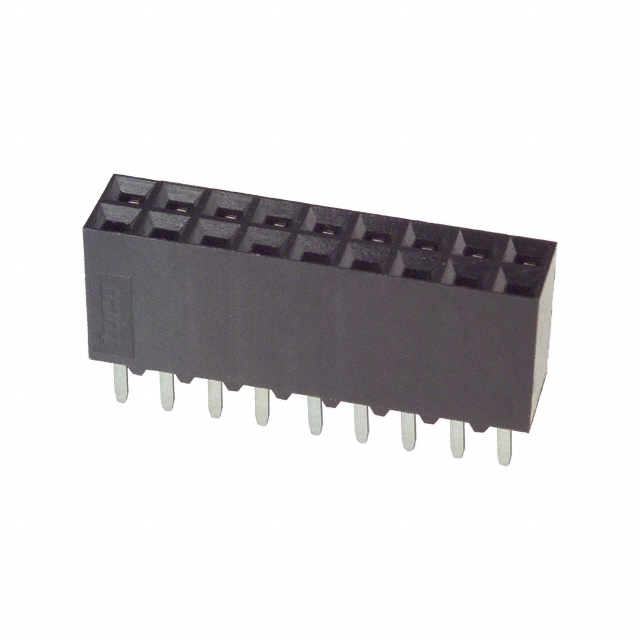

534206-9

CONN RCPT 18POS 0.1 GOLD PCB

Manufacturer: TE Connectivity AMP Connectors

Categories: Headers, Receptacles, Female Sockets

Quality Control: Learn More

TE Connectivity AMP Connectors AMPMODU Mod II receptacle, part number 534206-9, is an 18-position, 2-row connector with a 0.100" (2.54mm) pitch. This through-hole mounted component features gold contact plating for mating with a 30.0µin (0.76µm) thickness, ensuring reliable signal integrity and a 2A current rating. The contact type is a female socket, and the post termination is solderable with a tin-lead finish. Designed for board-to-board or cable applications, it operates within a -65°C to 125°C temperature range. This component is commonly utilized in industrial automation, consumer electronics, and automotive control systems.

Additional Information

Series: AMPMODU Mod IIRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TubeDatasheet:
Technical Details:
Features-
PackagingTube
Connector TypeReceptacle
Voltage Rating-
Current Rating (Amps)2A
Mounting TypeThrough Hole
Number of Positions18
StyleBoard to Board or Cable
Operating Temperature-65°C ~ 125°C
Contact TypeFemale Socket
Fastening TypePush-Pull
Number of Positions LoadedAll
TerminationSolder
Ingress Protection-
Material Flammability Rating-
Mated Stacking Heights-
Insulation ColorBlack
Pitch - Mating0.100"" (2.54mm)
Contact Finish - MatingGold
Contact Finish Thickness - Mating30.0µin (0.76µm)
Contact Finish - PostTin-Lead
Contact Length - Post0.115"" (2.92mm)
Insulation Height0.320"" (8.13mm)
Row Spacing - Mating0.100"" (2.54mm)
Number of Rows2
