5147722-3

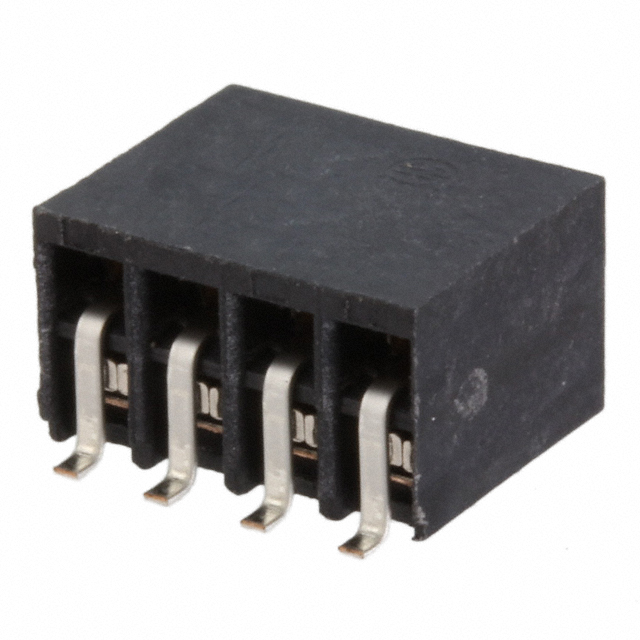

CONN RCPT 8POS 0.1 GOLD SMD R/AManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Receptacles, Female Sockets
Quality Control: Learn More
8 Position Receptacle Connector 0.100"" (2.54mm) Surface Mount, Right Angle Gold
Additional Information
Series: AMPMODU Mod IIRoHS Status: Request inventory verificationManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Connector Type | Receptacle |
| Voltage Rating | - |
| Current Rating (Amps) | 2A |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 8 |
| Style | Board to Board |
| Operating Temperature | -55°C ~ 125°C |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | - |
| Insulation Height | 0.238"" (6.05mm) |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Number of Rows | 2 |
Request a Quote
