5-1747147-4
CONN RCPT 4POS 0.4 GOLD PCBManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Receptacles, Female Sockets
Quality Control: Learn More
4 Position Receptacle Connector 0.400"" (10.16mm) Through Hole Gold
Additional Information
Series: Dynamic DZ5200RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Board Lock |
| Packaging | Tube |
| Connector Type | Receptacle |
| Voltage Rating | 600V |
| Current Rating (Amps) | 30A |
| Mounting Type | Through Hole |
| Number of Positions | 4 |
| Style | Board to Board |
| Operating Temperature | -55°C ~ 105°C |
| Contact Type | Female Blade Socket |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - |
| Insulation Color | Black |
| Pitch - Mating | 0.400"" (10.16mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.150"" (3.81mm) |
| Insulation Height | 0.551"" (14.00mm) |
| Row Spacing - Mating | - |
| Number of Rows | 1 |
Request a Quote
Clients Also Buy
1-1747145-7
CONN HEADER R/A 7POS 5.08MM

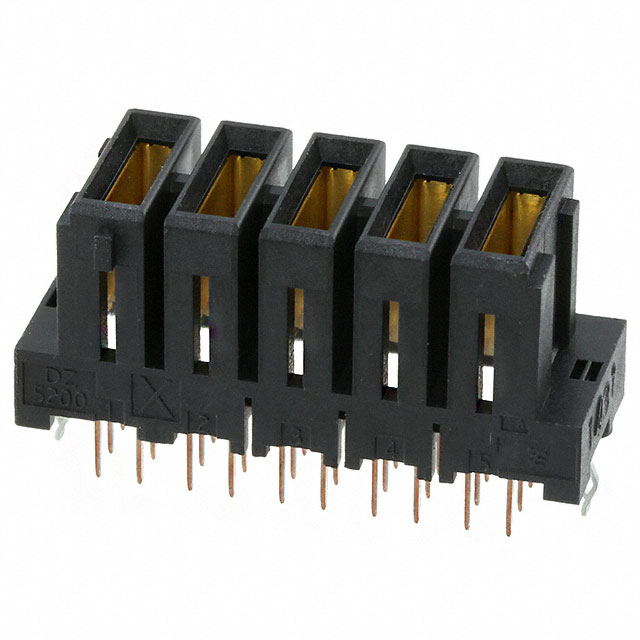

1-1747147-5
