5-104652-8
CONN RCPT 80POS 0.05 GOLD SMDManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Receptacles, Female Sockets
Quality Control: Learn More

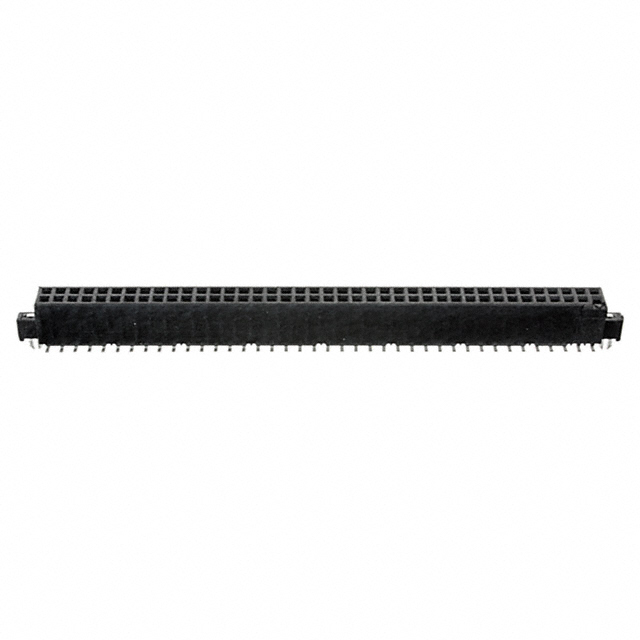

80 Position Receptacle Connector 0.050"" (1.27mm) Surface Mount Gold
Additional Information
Series: AMPMODU 50/50 GridRoHS Status: ROHS3 CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Tube |
| Connector Type | Receptacle |
| Voltage Rating | - |
| Current Rating (Amps) | - |
| Mounting Type | Surface Mount |
| Number of Positions | 80 |
| Style | Board to Board or Cable |
| Operating Temperature | -65°C ~ 105°C |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Mated Stacking Heights | 6.35mm, 8.13mm, 9.91mm |
| Insulation Color | Black |
| Pitch - Mating | 0.050"" (1.27mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | - |
| Insulation Height | 0.187"" (4.75mm) |
| Row Spacing - Mating | 0.050"" (1.27mm) |
| Number of Rows | 2 |
