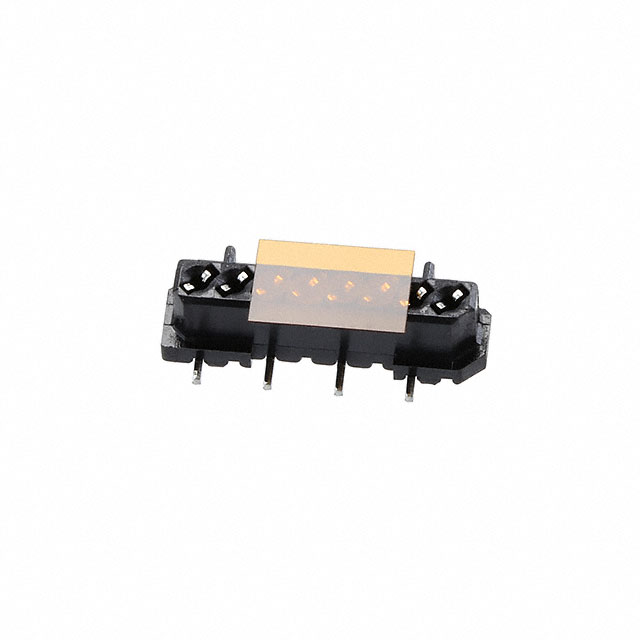

3-1827159-8
CONN RCPT 8POS 0.049 TIN SMDManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Receptacles, Female Sockets
Quality Control: Learn More
8 Position Receptacle Connector 0.049"" (1.25mm) Surface Mount Tin
Additional Information
Series: Fine PitchRoHS Status: ROHS3 CompliantManufacturer Lead Time: 11 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Pick and Place |
| Packaging | Tape & Reel (TR) |
| Connector Type | Receptacle |
| Voltage Rating | 50V |
| Current Rating (Amps) | 0.5A |
| Mounting Type | Surface Mount |
| Number of Positions | 8 |
| Style | Board to Board |
| Operating Temperature | -30°C ~ 105°C |
| Contact Type | Forked |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - |
| Insulation Color | - |
| Pitch - Mating | 0.049"" (1.25mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Length - Post | - |
| Insulation Height | 0.134"" (3.40mm) |
| Row Spacing - Mating | - |
| Number of Rows | 1 |
Request a Quote
Clients Also Buy
4-174639-4
CONN RCPT 14POS 0.049 TIN SMD

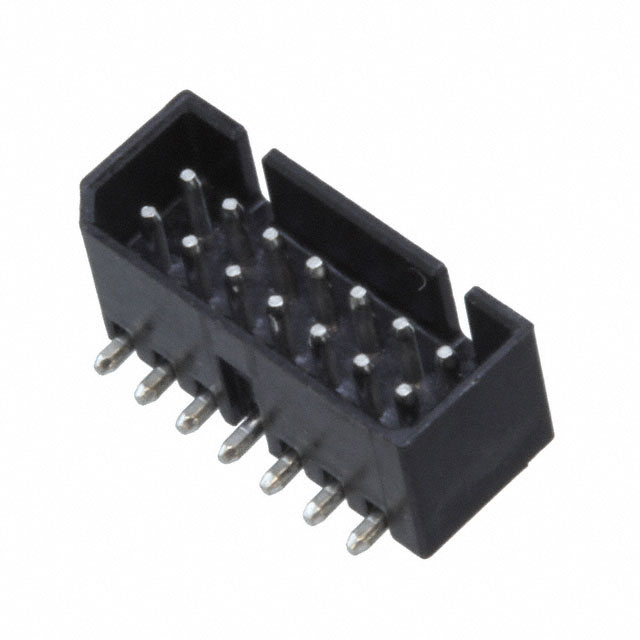

4-176891-4
