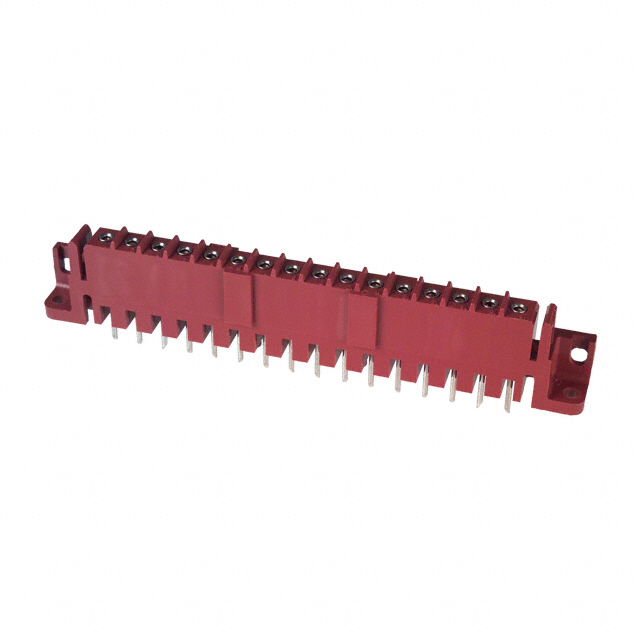

207615-1
CONN HDR 16P 0.197 TIN-LEAD PCBManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Receptacles, Female Sockets
Quality Control: Learn More
TE Connectivity AMP Connectors Metrimate series header, part number 207615-1, is a 16-position connector designed for PCB mounting. This through-hole header features a 0.197" (5.00mm) pitch and a tin-lead contact finish, ensuring reliable solder termination. The connector is rated for 600V and 7.5A, with female socket contact types and a 0.186" (4.72mm) post length. Manufactured with UL94 V-0 rated insulation in black and red, it offers an insulation height of 0.768" (19.50mm). The operating temperature range is -55°C to 130°C. This component is suitable for board-to-cable/wire applications and is commonly utilized in industrial automation and control systems. The product is supplied in tray packaging.
Additional Information
Series: MetrimateRoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Mounting Flange |
| Packaging | Tray |
| Connector Type | Header |
| Voltage Rating | 600V |
| Current Rating (Amps) | 7.5A |
| Mounting Type | Through Hole |
| Number of Positions | 16 |
| Style | Board to Cable/Wire |
| Operating Temperature | -55°C ~ 130°C |
| Contact Type | Female Socket |
| Fastening Type | Latch Holder |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - |
| Insulation Color | Black, Red |
| Pitch - Mating | 0.197"" (5.00mm) |
| Contact Finish - Mating | Tin-Lead |
| Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Length - Post | 0.186"" (4.72mm) |
| Insulation Height | 0.768"" (19.50mm) |
| Row Spacing - Mating | - |
| Number of Rows | 1 |
