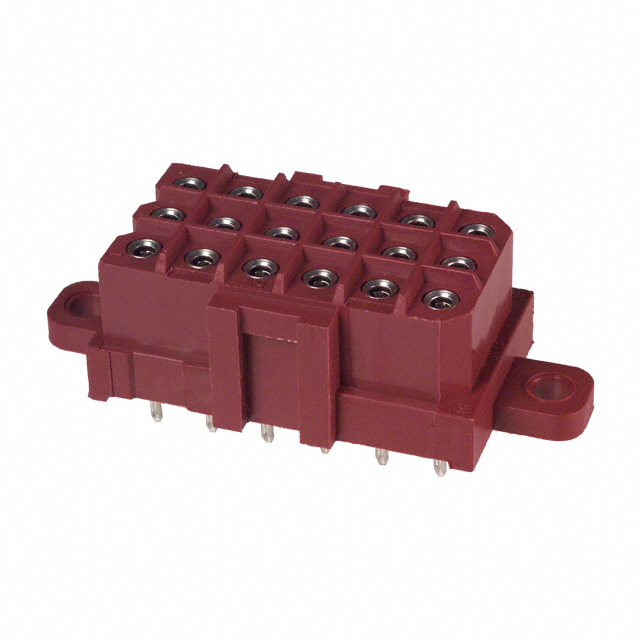

207530-7
CONN HDR 18POS 0.197 TIN PCBManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Receptacles, Female Sockets
Quality Control: Learn More
18 Position Header Connector 0.197"" (5.00mm) Through Hole Tin
Additional Information
Series: MetrimateRoHS Status: ROHS3 CompliantManufacturer Lead Time: 38 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Mounting Flange |
| Packaging | Tray |
| Connector Type | Header |
| Voltage Rating | 600V |
| Current Rating (Amps) | 7.5A |
| Mounting Type | Through Hole |
| Number of Positions | 18 |
| Style | Board to Cable/Wire |
| Operating Temperature | -55°C ~ 130°C |
| Contact Type | Female Socket |
| Fastening Type | Latch Holder |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - |
| Insulation Color | Red |
| Pitch - Mating | 0.197"" (5.00mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.181"" (4.60mm) |
| Insulation Height | 0.565"" (14.35mm) |
| Row Spacing - Mating | 0.197"" (5.00mm) |
| Number of Rows | 3 |
