2-1734531-2
CONN RCPT 22P 0.079 GOLD PCB R/AManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Receptacles, Female Sockets
Quality Control: Learn More

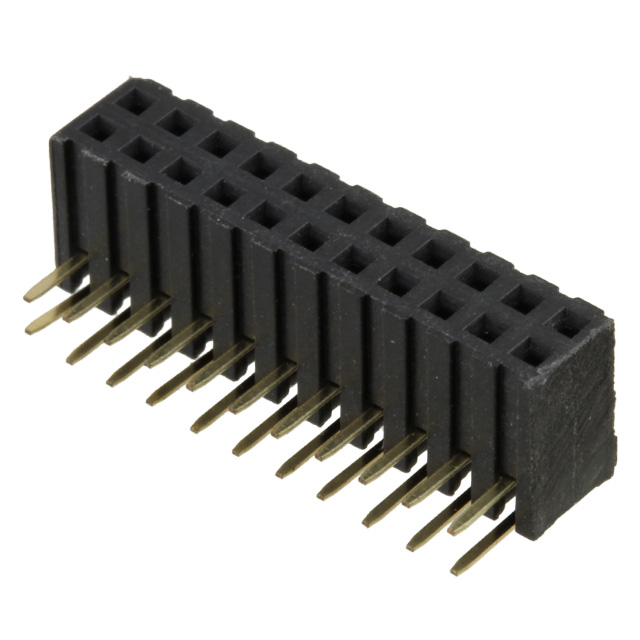

22 Position Receptacle Connector 0.079"" (2.00mm) Through Hole, Right Angle Gold
Additional Information
Series: AMPMODURoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Connector Type | Receptacle |
| Voltage Rating | 250VAC |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 22 |
| Style | Board to Board |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - |
| Insulation Color | Black |
| Pitch - Mating | 0.079"" (2.00mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.118"" (3.00mm) |
| Insulation Height | 0.191"" (4.85mm) |
| Row Spacing - Mating | 0.079"" (2.00mm) |
| Number of Rows | 2 |
