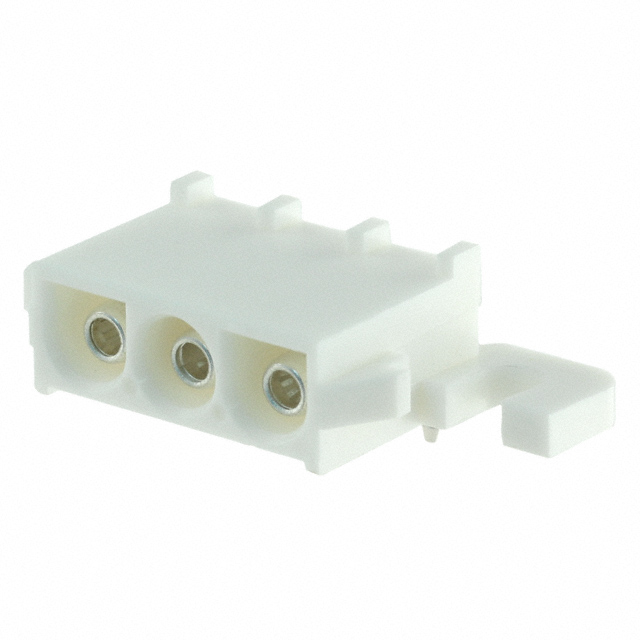

193839-2
CONN RCPT 3P 0.25 SILVER PCB R/AManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Receptacles, Female Sockets
Quality Control: Learn More
3 Position Receptacle Connector 0.250"" (6.35mm) Through Hole, Right Angle Silver
Additional Information
Series: Universal MATE-N-LOKRoHS Status: Request inventory verificationManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Mounting Flange |
| Packaging | Bulk |
| Connector Type | Receptacle |
| Voltage Rating | - |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 3 |
| Style | Board to Cable/Wire |
| Operating Temperature | - |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - |
| Insulation Color | Natural |
| Pitch - Mating | 0.250"" (6.35mm) |
| Contact Finish - Mating | Silver |
| Contact Finish Thickness - Mating | 200.0µin (5.08µm) |
| Contact Finish - Post | - |
| Contact Length - Post | 0.160"" (4.06mm) |
| Insulation Height | 0.680"" (17.27mm) |
| Row Spacing - Mating | - |
| Number of Rows | 1 |
